Power Macintosh 7100 - wiki
CPU
PowerPC 601 @ 66.66MHz (7100/66)
PowerPC 601 @ 80.00MHz (7100/80)
FPU onboard
System bus @ 33.33MHz; 64-bit (7100/66)
System bus @ 40.00MHz; 64-bit (7100/80)
256k L2 cache installed from factory (7100/80)
256k, 512k, 1MB aftermarket L2 cache modules available for both models
Memory
8MB onboard, 70ns; 136MB max
4 x 72-pin SIMMs, 80ns or faster, interleaving pairs of two when evenly matched
Images of the AV and HPV cards on the Apple page in the Rolodex
CPU
PowerPC 601 @ 66.66MHz (7100/66)
PowerPC 601 @ 80.00MHz (7100/80)
FPU onboard
System bus @ 33.33MHz; 64-bit (7100/66)
System bus @ 40.00MHz; 64-bit (7100/80)
256k L2 cache installed from factory (7100/80)
256k, 512k, 1MB aftermarket L2 cache modules available for both models
Memory
8MB onboard, 70ns; 136MB max
4 x 72-pin SIMMs, 80ns or faster, interleaving pairs of two when evenly matched
Images of the AV and HPV cards on the Apple page in the Rolodex

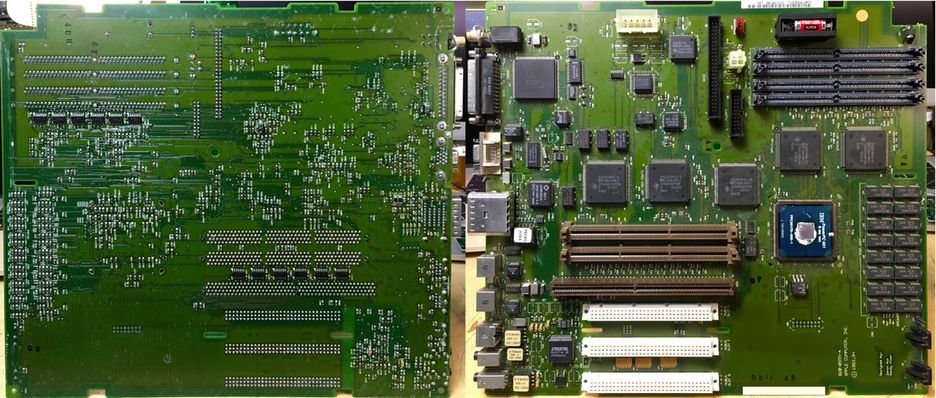

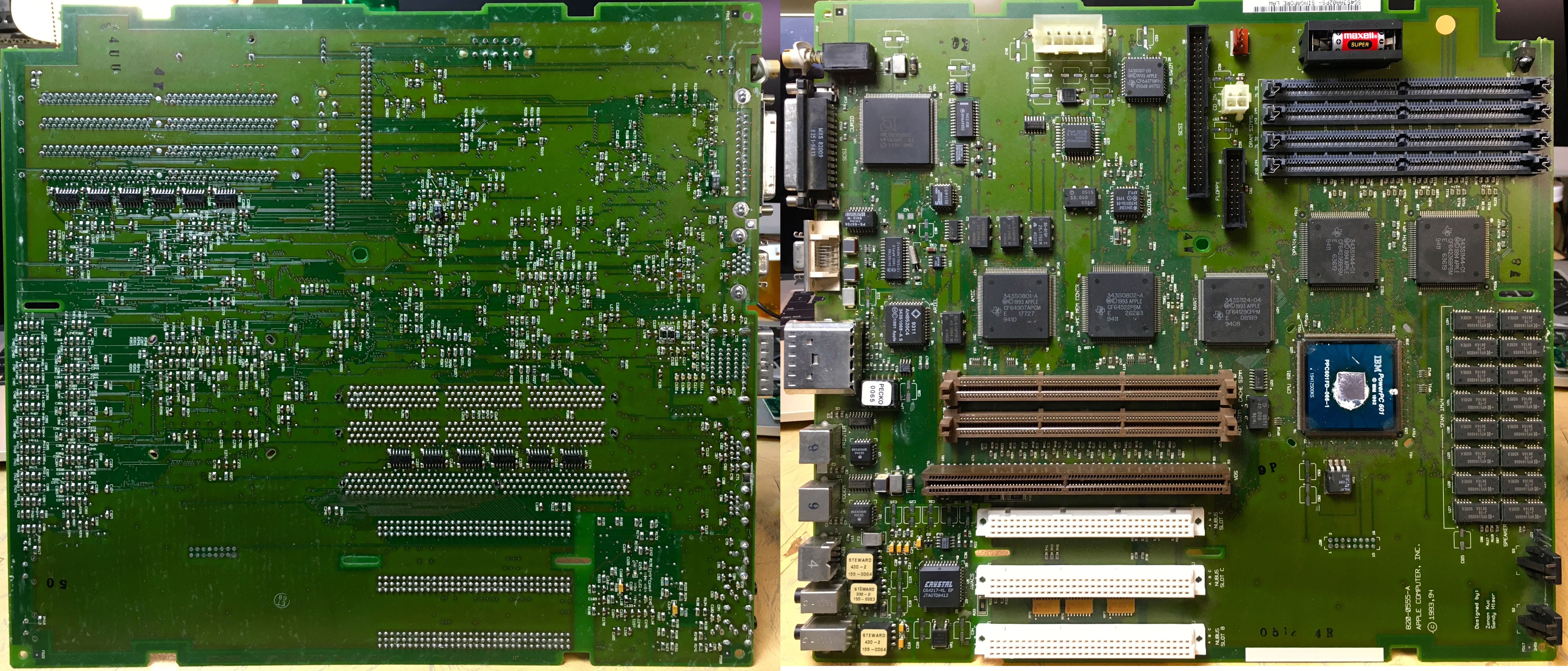

Main logic board (7100/66) 820-0555-A
image should be considered temporary as this board is missing all of its capactitors.
image should be considered temporary as this board is missing all of its capactitors.

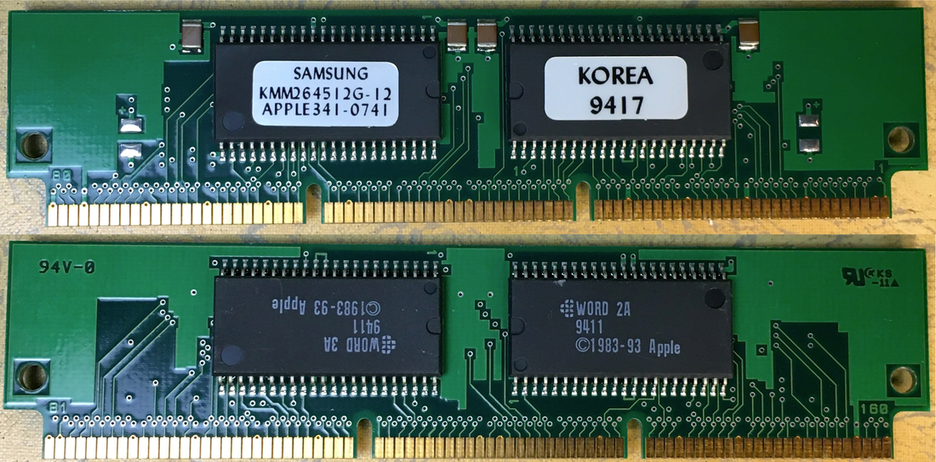

ROM SIMM (7100/66) 341-0741

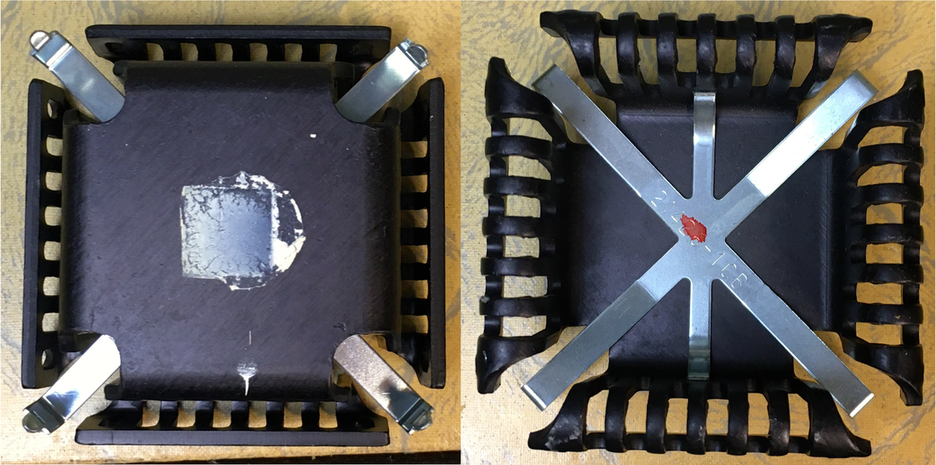

Cooler (7100/66)
