Description:

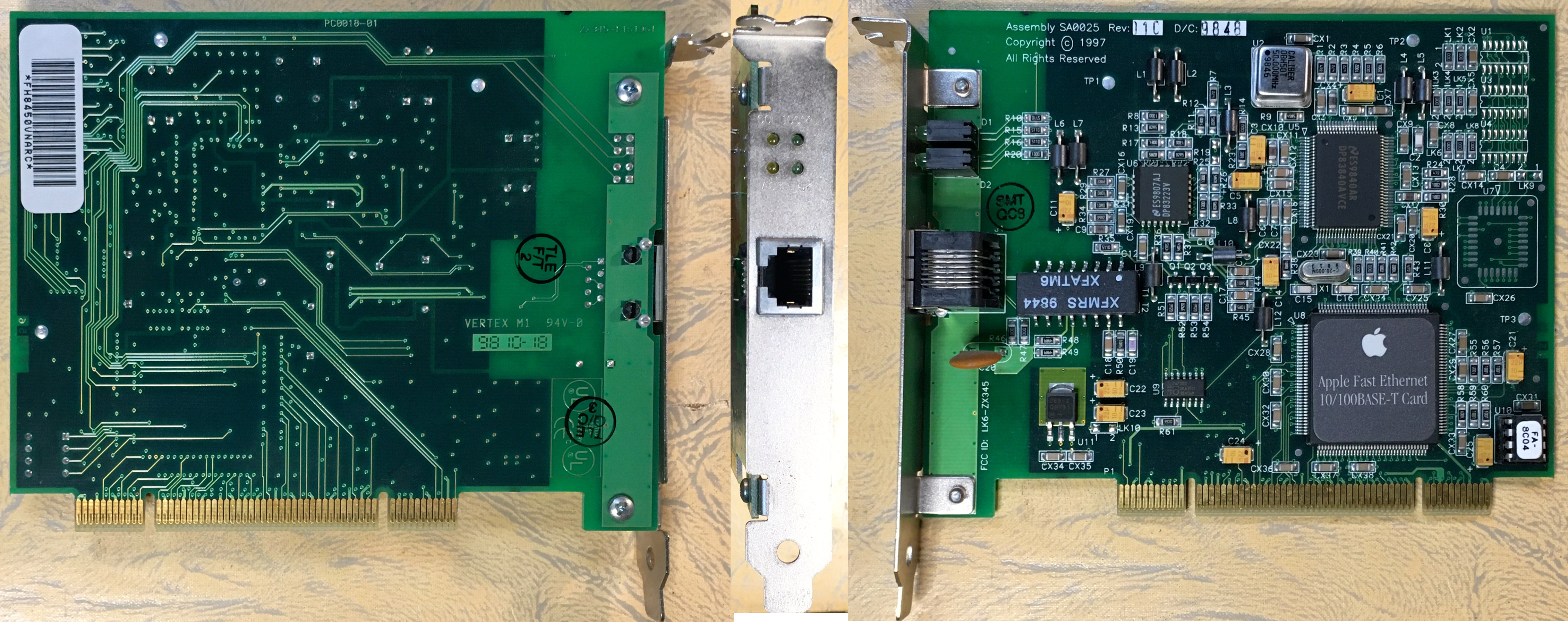

Universal 32-bit PCI card provides 10/100BASE-T ethernet via external RJ-45 jack. Shipped optionally with beige G3 machines, especially server models, and runs with native ethernet drivers from 8.6-9.2. Is a rebranded ZNYX Netblaster ZX345. Four external LED indicators indicate link, speed, collision, and activity.
Identifying Numbers:
Apple Fast Ethernet 10/100BASE-T Card; SA0025; LK6-ZX345; PC0018-01; ZX345-E161961
Onboard logic:
ES9840AR
Universal 32-bit PCI card provides 10/100BASE-T ethernet via external RJ-45 jack. Shipped optionally with beige G3 machines, especially server models, and runs with native ethernet drivers from 8.6-9.2. Is a rebranded ZNYX Netblaster ZX345. Four external LED indicators indicate link, speed, collision, and activity.
Identifying Numbers:
Apple Fast Ethernet 10/100BASE-T Card; SA0025; LK6-ZX345; PC0018-01; ZX345-E161961
Onboard logic:
ES9840AR
Description:

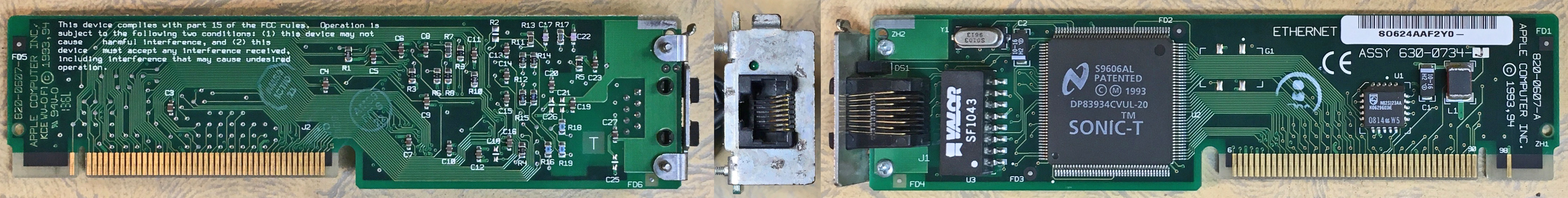

Comm Slot card provides 10BASE-T ethernet via external RJ-45 interface.
Identifying Numbers:
ETHERNET CS TWISTED-PAIR CARD; 820-0607-A; 630-0734-J
Onboard logic:
NS SONIC™-T S9606AL DP83934CVUL-20
Comm Slot card provides 10BASE-T ethernet via external RJ-45 interface.
Identifying Numbers:
ETHERNET CS TWISTED-PAIR CARD; 820-0607-A; 630-0734-J
Onboard logic:
NS SONIC™-T S9606AL DP83934CVUL-20

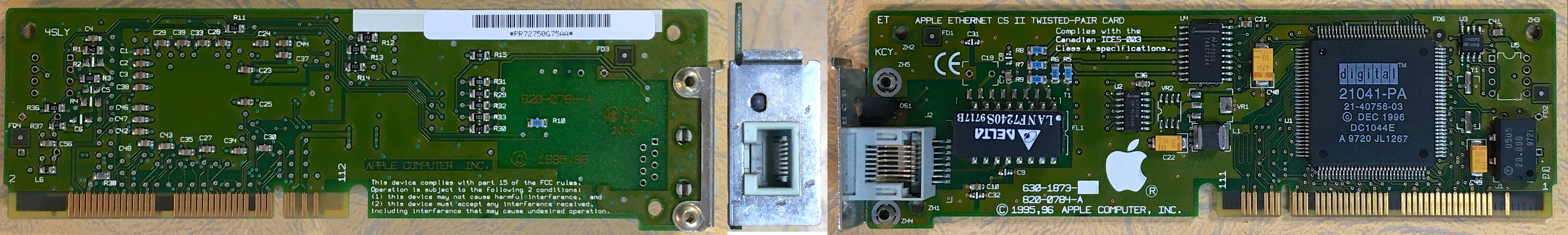

Description:

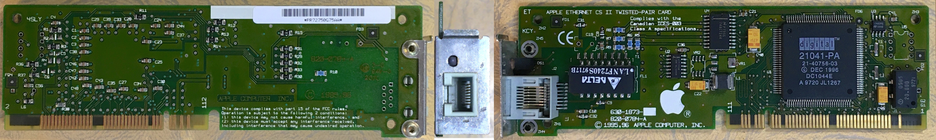

Comm Slot II card provides 10BASE-T ethernet via external RJ-45 interface. Uses the PCI signaling in CSII slot.
Identifying Numbers:
ETHERNET CS II TWISTED-PAIR CARD; 820-0784-A; 630-1873-
Onboard logic:
Digital 21041-PA 21-40756-03
Comm Slot II card provides 10BASE-T ethernet via external RJ-45 interface. Uses the PCI signaling in CSII slot.
Identifying Numbers:
ETHERNET CS II TWISTED-PAIR CARD; 820-0784-A; 630-1873-
Onboard logic:
Digital 21041-PA 21-40756-03

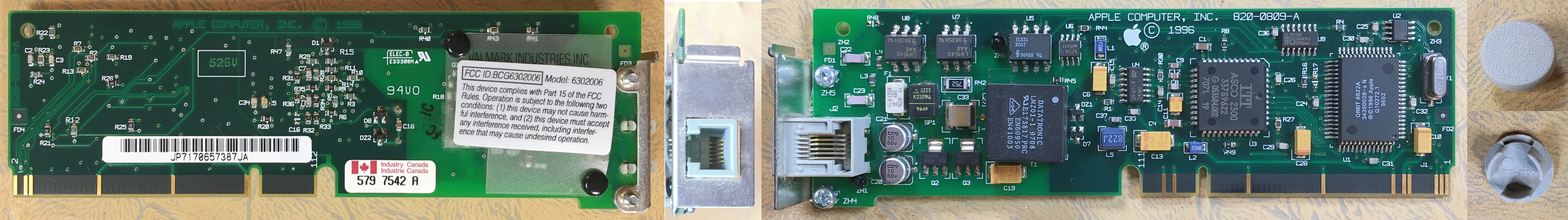

Description:

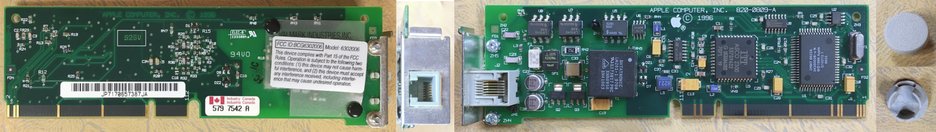

Comm Slot II modem - 28.8k via external RJ-11 jack. Uses the serial signaling in CSII slot, and includes factory blank cover to fill Modem port (port becomes unusable when CSII modems are installed.)
Identifying Numbers:
820-0809-A; BCG6302006; 6302006; 579 7542 A; 815-2130 (port cover)
Onboard logic:
Orbit 6822A 343S0028-a N Q10272.1; ITT ASCO 2300 337S9622; Datatronic LM201-1
Comm Slot II modem - 28.8k via external RJ-11 jack. Uses the serial signaling in CSII slot, and includes factory blank cover to fill Modem port (port becomes unusable when CSII modems are installed.)
Identifying Numbers:
820-0809-A; BCG6302006; 6302006; 579 7542 A; 815-2130 (port cover)
Onboard logic:
Orbit 6822A 343S0028-a N Q10272.1; ITT ASCO 2300 337S9622; Datatronic LM201-1
Description:

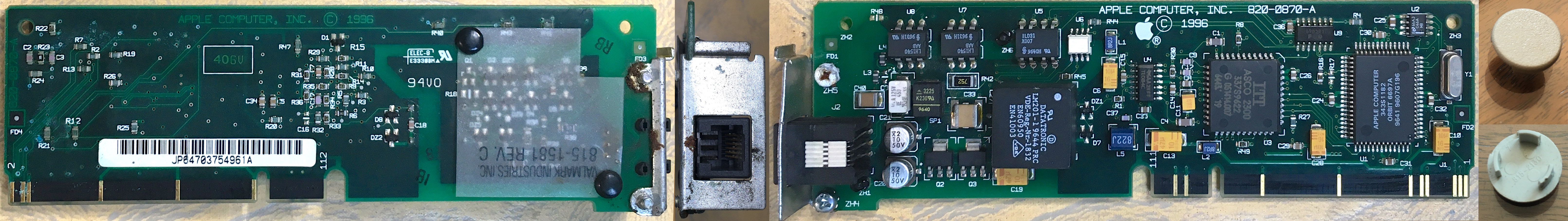

Comm Slot II modem - 28.8k? via external RJ-11 jack. Uses the serial signaling in CSII slot, and includes factory blank cover to fill Modem port (port becomes unusable when CSII modems are installed.)
Identifying Numbers:
820-0870-A; 815-1581 REV. C; 815-2130 (port cover)
Onboard logic:
Orbit 6697A 343S1182 9607G196; ITT ASCO 2300 337S9622; Datatronic LM201-1
Comm Slot II modem - 28.8k? via external RJ-11 jack. Uses the serial signaling in CSII slot, and includes factory blank cover to fill Modem port (port becomes unusable when CSII modems are installed.)
Identifying Numbers:
820-0870-A; 815-1581 REV. C; 815-2130 (port cover)
Onboard logic:
Orbit 6697A 343S1182 9607G196; ITT ASCO 2300 337S9622; Datatronic LM201-1

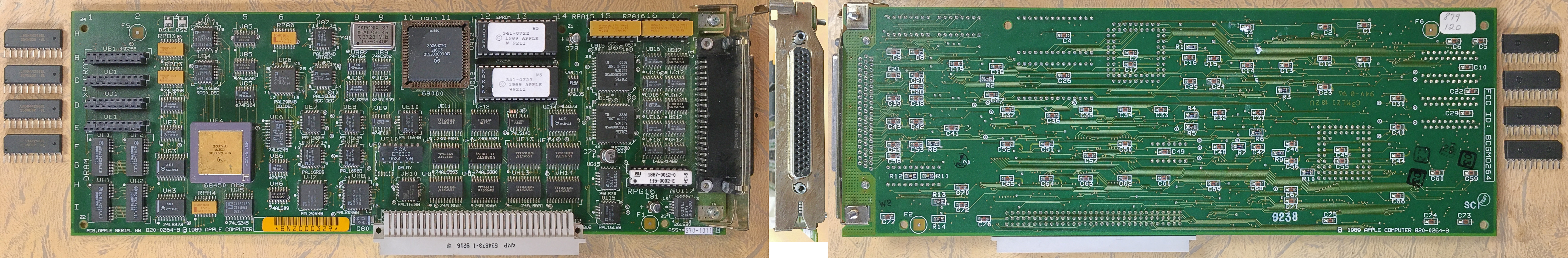

Description:
NuBus card provides four serial interfaces combined via external DC-62 connector. Breakout cable is needed to convert individual interfaces to DB-25 or DE-9. Card implements A/ROSE, offloading some of the communications stack to a Motorola 68000 processor onboard. Onboard DRAM is expanded using four ZIP sockets. Apple's MCP Memory Expansion Kit (4 x 256K) is pictured.
Identifying Numbers:
Apple Serial NB; 820-0264-B; 670-1011; BCGM0264; W5 341-0722 (ROM); W5 341-0723 (ROM)
Onboard logic:
Motorola MC68450RC10; Motorola MC68000FN10; Zilog Z85C3008VSD SL1075 (x2); Signetics [S]27C256 -20 N 9144KL (x2) (ROMs)
NuBus card provides four serial interfaces combined via external DC-62 connector. Breakout cable is needed to convert individual interfaces to DB-25 or DE-9. Card implements A/ROSE, offloading some of the communications stack to a Motorola 68000 processor onboard. Onboard DRAM is expanded using four ZIP sockets. Apple's MCP Memory Expansion Kit (4 x 256K) is pictured.
Identifying Numbers:
Apple Serial NB; 820-0264-B; 670-1011; BCGM0264; W5 341-0722 (ROM); W5 341-0723 (ROM)
Onboard logic:
Motorola MC68450RC10; Motorola MC68000FN10; Zilog Z85C3008VSD SL1075 (x2); Signetics [S]27C256 -20 N 9144KL (x2) (ROMs)

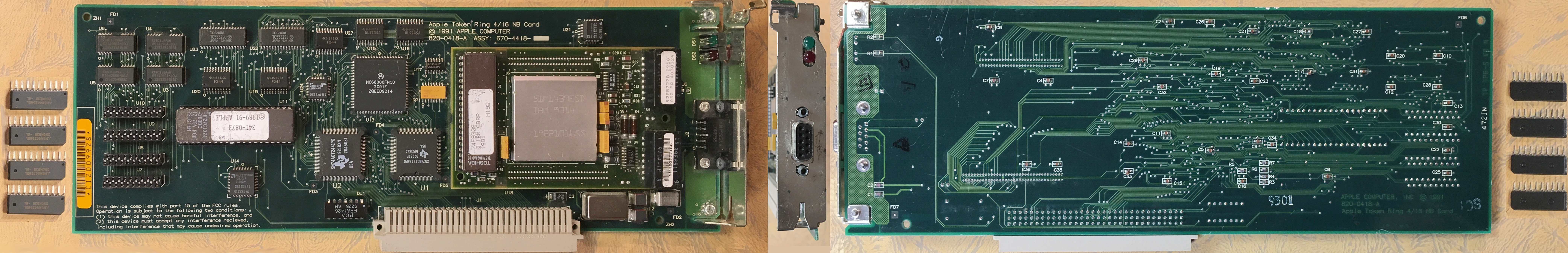

Description:
NuBus card provides token ring networking, and also implements A/ROSE to offload some of the networking stack to a dedicated Motorola 68000 processor. Onboard DRAM is expanded using four ZIP sockets. Apple's MCP Memory Expansion Kit (4 x 256K) is pictured.
Identifying Numbers:
Apple Token Ring 4/16 NB Card; 820-0418-A; 670-4418-; TP TPB-S.V0 N; 74F9308 H192 (ROM); 341-0873 W5 (ROM)
Onboard logic:
Motorola MC68000FN10 2C91E; TI SN74ACT2441PQ; TI SN74BCT2425PQ; IBM 51F1439ESD; Toshiba TC57H1024AD-85 (ROM); AMD AM27C1024 -200DC (ROM)
NuBus card provides token ring networking, and also implements A/ROSE to offload some of the networking stack to a dedicated Motorola 68000 processor. Onboard DRAM is expanded using four ZIP sockets. Apple's MCP Memory Expansion Kit (4 x 256K) is pictured.
Identifying Numbers:
Apple Token Ring 4/16 NB Card; 820-0418-A; 670-4418-; TP TPB-S.V0 N; 74F9308 H192 (ROM); 341-0873 W5 (ROM)
Onboard logic:
Motorola MC68000FN10 2C91E; TI SN74ACT2441PQ; TI SN74BCT2425PQ; IBM 51F1439ESD; Toshiba TC57H1024AD-85 (ROM); AMD AM27C1024 -200DC (ROM)

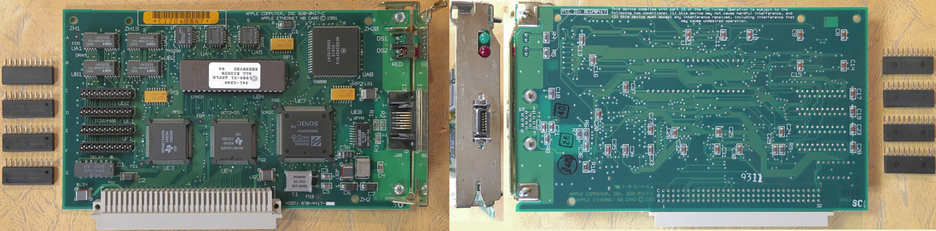

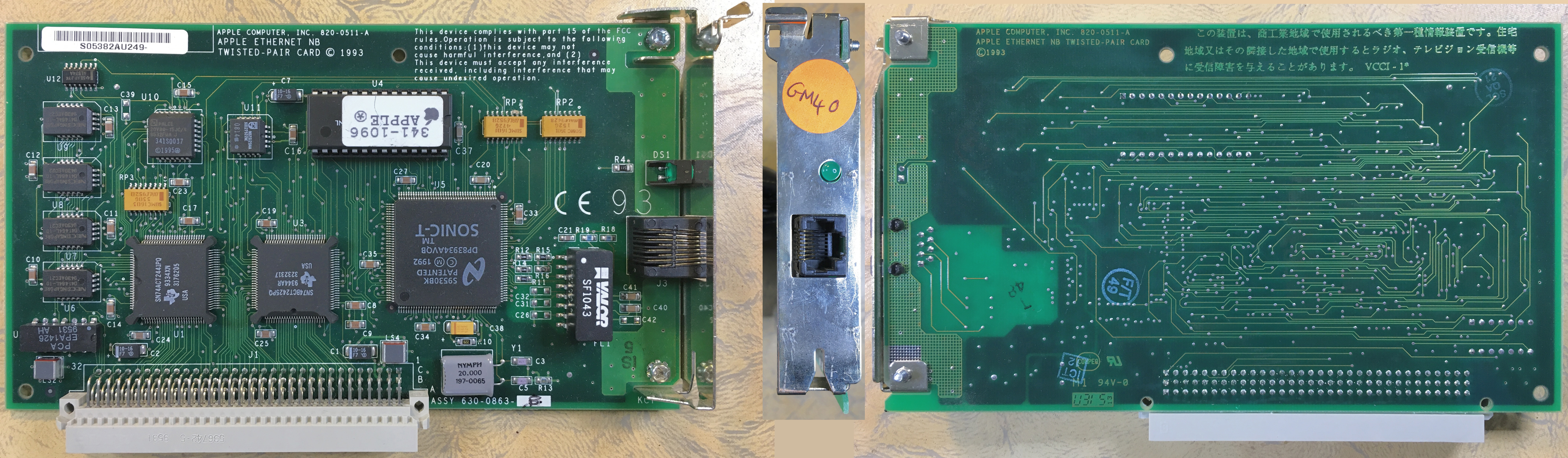

Description:

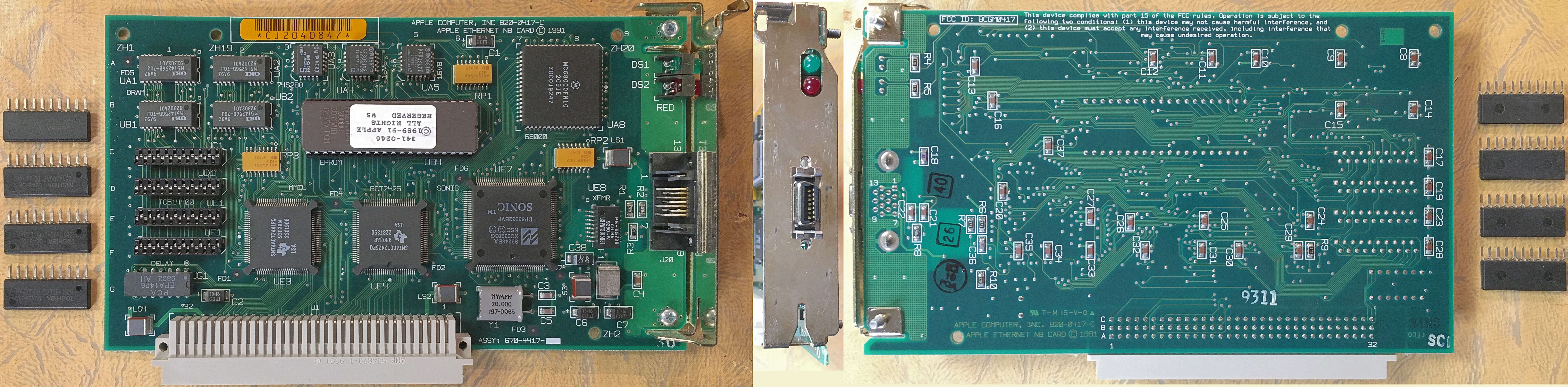

NuBus card provides 10BASE-T ethernet via external AAUI port. Includes two exterior-facing status indicator LEDs. Card implements A/ROSE, offloading some of the networking stack to a Motorola 68000 processor onboard. Onboard DRAM is expanded using four ZIP sockets (4 x 256K pictured.)
Identifying Numbers:
Apple Ethernet NB Card; 820-0417-C; 670-4417-; BCGM0417; 341-0246 W5 (ROM)
Onboard logic:
TI SN74ACT2441PQ; TI SN74BCT2425PQ; NS S9248BA CX03203G SONIC™ DP83932BVF; Motorola MC68000FN10 2C91E; AMD AM27C1024-200DC (ROM)
NuBus card provides 10BASE-T ethernet via external AAUI port. Includes two exterior-facing status indicator LEDs. Card implements A/ROSE, offloading some of the networking stack to a Motorola 68000 processor onboard. Onboard DRAM is expanded using four ZIP sockets (4 x 256K pictured.)
Identifying Numbers:
Apple Ethernet NB Card; 820-0417-C; 670-4417-; BCGM0417; 341-0246 W5 (ROM)
Onboard logic:
TI SN74ACT2441PQ; TI SN74BCT2425PQ; NS S9248BA CX03203G SONIC™ DP83932BVF; Motorola MC68000FN10 2C91E; AMD AM27C1024-200DC (ROM)
Description:

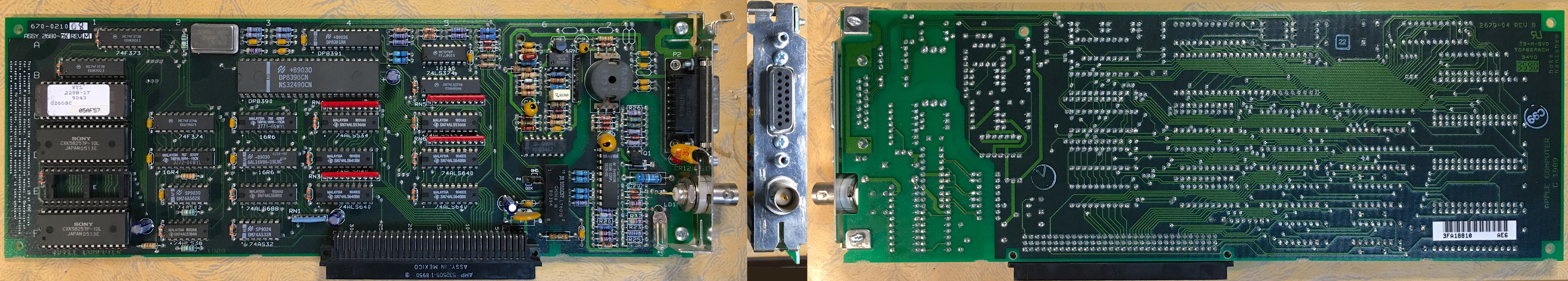

NuBus card provides 10BASE-T and 10BASE-2 ethernet via external DA-15 AUI and BNC interfaces.
Identifying Numbers:
670-0210 08; 2680-08 REV M; 2679-04 REV B; 12" Ethernet NuBus Card; WYL 2298-17 9043 0260BC 05AF57 (ROM)
Onboard logic:
NS +B9030 DP8390CN NS32490CN; TI TMS27C128JL LDE 9009 (ROM)
NuBus card provides 10BASE-T and 10BASE-2 ethernet via external DA-15 AUI and BNC interfaces.
Identifying Numbers:
670-0210 08; 2680-08 REV M; 2679-04 REV B; 12" Ethernet NuBus Card; WYL 2298-17 9043 0260BC 05AF57 (ROM)
Onboard logic:
NS +B9030 DP8390CN NS32490CN; TI TMS27C128JL LDE 9009 (ROM)

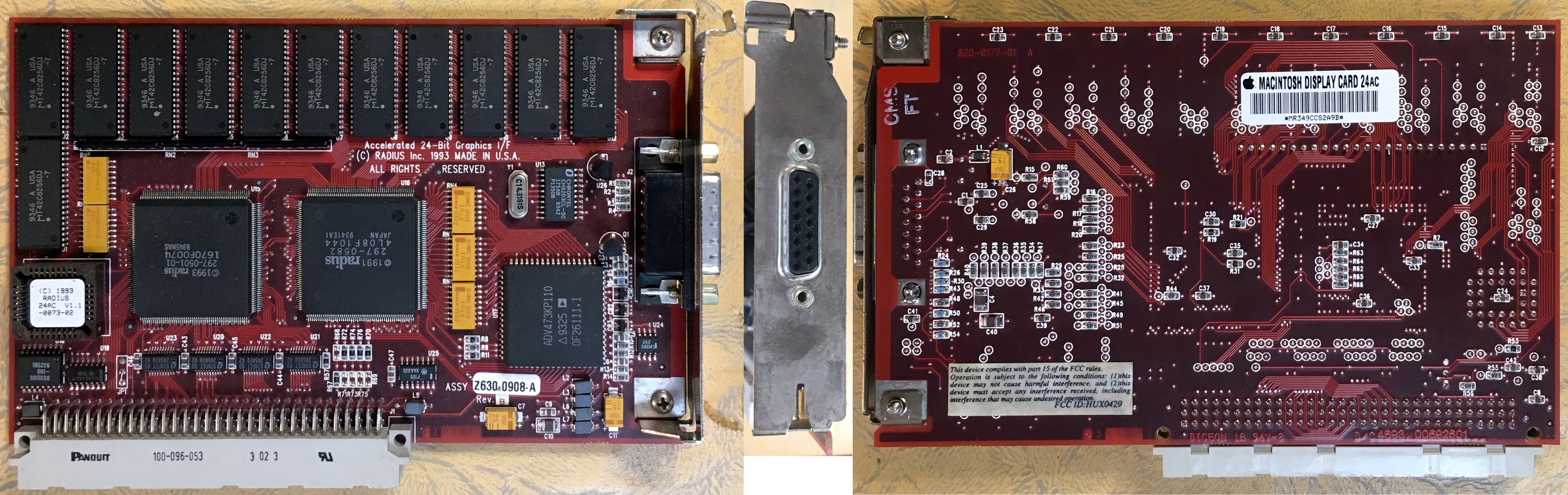

Description:
NuBus card provides QuickDraw accelerated video output with a maximum 1152x870 resolution at 32-bit color. Resolution can be changed on-the-fly in the control panel. This is a rebrand of the Radius PrecisionColor Pro 24X with a custom ROM for support via Apple's extension.
Identifying Numbers:
Macintosh Display Card 24AC; Z630-0908-A Rev. B; HUX0429; 820-0177-01 A; 24AC V1.1 -0073-02 (ROM)
Onboard logic:
Radius 297-0501-01 1670F0074; Radius 297-0582 4L08F1044; Analog ADV473KP110; TI-150FML TMS27PC256 BLUP932018 (ROM)
Performance data: IIfx
NuBus card provides QuickDraw accelerated video output with a maximum 1152x870 resolution at 32-bit color. Resolution can be changed on-the-fly in the control panel. This is a rebrand of the Radius PrecisionColor Pro 24X with a custom ROM for support via Apple's extension.
Identifying Numbers:
Macintosh Display Card 24AC; Z630-0908-A Rev. B; HUX0429; 820-0177-01 A; 24AC V1.1 -0073-02 (ROM)
Onboard logic:
Radius 297-0501-01 1670F0074; Radius 297-0582 4L08F1044; Analog ADV473KP110; TI-150FML TMS27PC256 BLUP932018 (ROM)
Performance data: IIfx
Description:

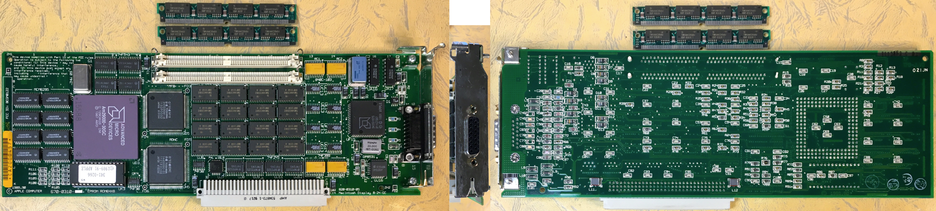

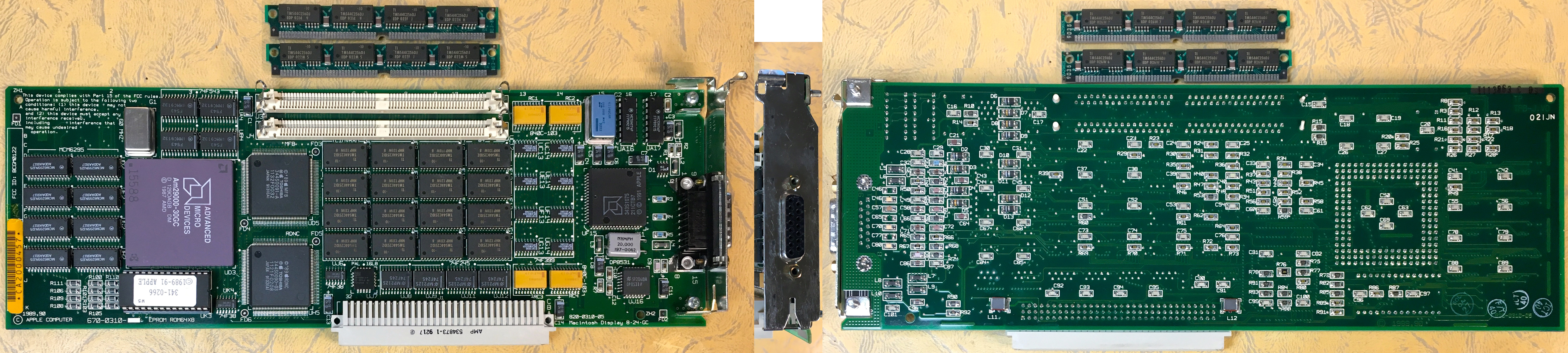

NuBus card provides QuickDraw accelerated video output with 1MB VRAM. Card is rumored to be engineered specifically for use in the IIfx, though acceleration works on any 68030 NuBus host machine and supports accelerating adjacent non-accelerated cards via NuBus block transfer (supported models include the Display Card 4•8; 8•24, Radius VideoVision, etc.) Acceleration is performed by an AMD Am29000 at 30MHz with 64k SRAM and 2MB onboard DRAM for Gworlds, expandable to 4 or 10MB using 64-pin SIMMs which differ from the type used in the IIfx (2 x 1MB SIMMs pictured.) 1MB framebuffer is not upgradeable; pictured Rev B card supports 1,2,4,8,16, and 24-bit color modes (Rev A does not have 16-bit support.) Control panel versions available for up to Systems 6.0.8 and 7.1; 7.1 version accelerates reliably with certain visual artifacts in 7.5, 7.6, and 8.1; will never work if the filename has been altered. Apple claims the card draws 20w of power, though the total rated bus power for all compatible systems allots only 15 watts per slot. The 8•24 GC should therefore be offset by an empty slot, or a card which draws 10w or less.
640 x 480 @ 24-bit
640 x 870 @ 8-bit
832 x 624 (Rev B ROM only; 341-0266) @ 16-bit (Rev B card; RAMDAC 343S1075) or 8-bit (Rev A card; 357S0010)
1152 x 870 @ 8-bit
Identifying Numbers:
Macintosh Display Card 8•24 GC; 820-0310-A; 670-0310-; BCGM0122; 341-0266 (ROM B); 341-0812 (ROM A)
Onboard logic:
AMD Am29000-30GC D 129OAGB DM; Toshiba 344S0091-A 1132F0032 MFB; Toshiba 344S0090-03 1121F0208 RDNC; AMD 343S1075 211CTB7 ; AMD AM27C512 -200PC (ROM)
Reference: The Naked Truth (ext)
Performance data: IIfx
NuBus card provides QuickDraw accelerated video output with 1MB VRAM. Card is rumored to be engineered specifically for use in the IIfx, though acceleration works on any 68030 NuBus host machine and supports accelerating adjacent non-accelerated cards via NuBus block transfer (supported models include the Display Card 4•8; 8•24, Radius VideoVision, etc.) Acceleration is performed by an AMD Am29000 at 30MHz with 64k SRAM and 2MB onboard DRAM for Gworlds, expandable to 4 or 10MB using 64-pin SIMMs which differ from the type used in the IIfx (2 x 1MB SIMMs pictured.) 1MB framebuffer is not upgradeable; pictured Rev B card supports 1,2,4,8,16, and 24-bit color modes (Rev A does not have 16-bit support.) Control panel versions available for up to Systems 6.0.8 and 7.1; 7.1 version accelerates reliably with certain visual artifacts in 7.5, 7.6, and 8.1; will never work if the filename has been altered. Apple claims the card draws 20w of power, though the total rated bus power for all compatible systems allots only 15 watts per slot. The 8•24 GC should therefore be offset by an empty slot, or a card which draws 10w or less.
640 x 480 @ 24-bit
640 x 870 @ 8-bit
832 x 624 (Rev B ROM only; 341-0266) @ 16-bit (Rev B card; RAMDAC 343S1075) or 8-bit (Rev A card; 357S0010)
1152 x 870 @ 8-bit
Identifying Numbers:
Macintosh Display Card 8•24 GC; 820-0310-A; 670-0310-; BCGM0122; 341-0266 (ROM B); 341-0812 (ROM A)
Onboard logic:
AMD Am29000-30GC D 129OAGB DM; Toshiba 344S0091-A 1132F0032 MFB; Toshiba 344S0090-03 1121F0208 RDNC; AMD 343S1075 211CTB7 ; AMD AM27C512 -200PC (ROM)
Reference: The Naked Truth (ext)
Performance data: IIfx

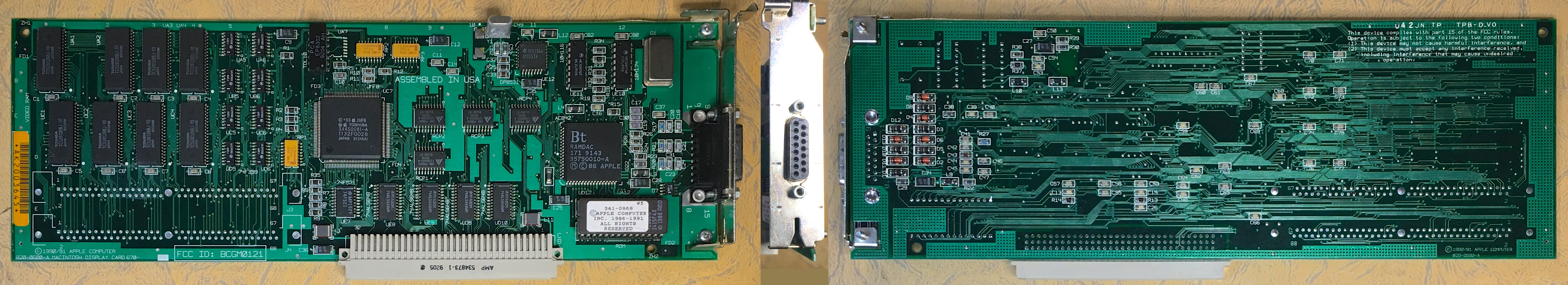

Description:
NuBus card provides video output with a maximum 1152x870 at 8-bit color, 640x480 at 32-bit color. 832x624 at 8-bit color is supported with Rev B ROM only. This is the last card to support MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors. Card is not accelerated but supports being accelerated by a host card via NuBus block transfer. Also supports portrait and two-page displays in 8-bit grayscale.
Identifying Numbers:
Macintosh Display Card 8•24; 820-0600-A; Macintosh Display Card 670-; BCGM0121; 341-0868 W5 (ROM)
Onboard logic:
Toshiba 344S0081-A 1132F0028; Bt 357S0010-A; AMD AM27C256 -200DC (ROM)
Performance data: IIfx
NuBus card provides video output with a maximum 1152x870 at 8-bit color, 640x480 at 32-bit color. 832x624 at 8-bit color is supported with Rev B ROM only. This is the last card to support MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors. Card is not accelerated but supports being accelerated by a host card via NuBus block transfer. Also supports portrait and two-page displays in 8-bit grayscale.
Identifying Numbers:
Macintosh Display Card 8•24; 820-0600-A; Macintosh Display Card 670-; BCGM0121; 341-0868 W5 (ROM)
Onboard logic:
Toshiba 344S0081-A 1132F0028; Bt 357S0010-A; AMD AM27C256 -200DC (ROM)
Performance data: IIfx

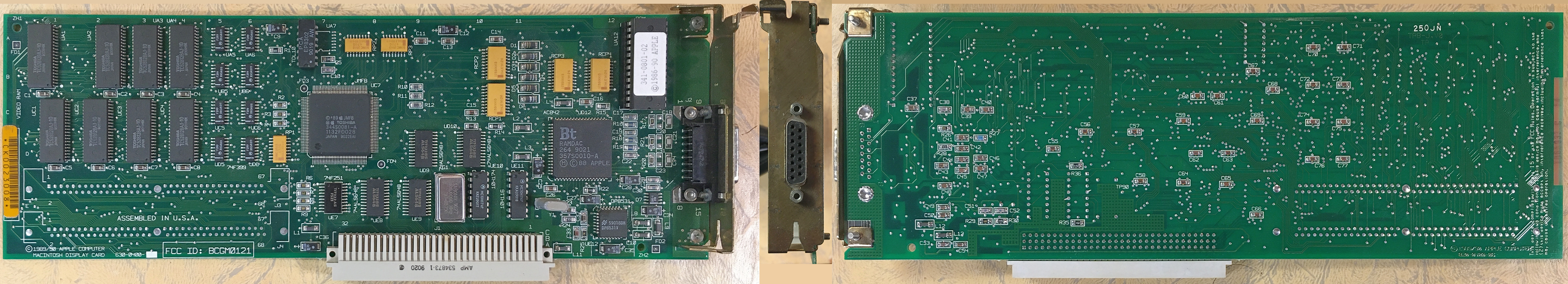

Description:

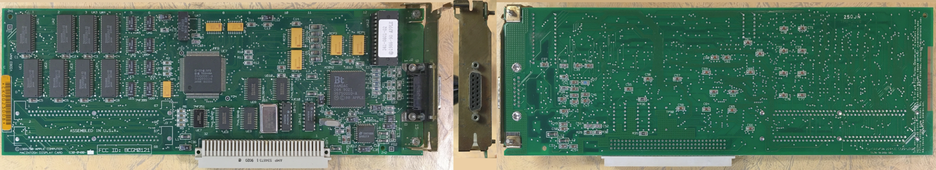

NuBus card provides video output with a maximum 1152x870 at 8-bit color, 640x480 at 32-bit color. 832x624 at 8-bit color is supported with Rev B ROM only. This is the last card to support MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors. Card is not accelerated but supports being accelerated by a host card via NuBus block transfer. Also supports portrait and two-page displays in 8-bit grayscale.
Identifying Numbers:
Macintosh Display Card 8•24; 820-0400-06; 630-0400-; BCGM0121; 341-0801-02 (ROM)
Onboard logic:
Toshiba 344S0081-A 1132F0028; Bt 357S0010-A; AMD AM27C128-205PC (ROM)
NuBus card provides video output with a maximum 1152x870 at 8-bit color, 640x480 at 32-bit color. 832x624 at 8-bit color is supported with Rev B ROM only. This is the last card to support MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors. Card is not accelerated but supports being accelerated by a host card via NuBus block transfer. Also supports portrait and two-page displays in 8-bit grayscale.
Identifying Numbers:
Macintosh Display Card 8•24; 820-0400-06; 630-0400-; BCGM0121; 341-0801-02 (ROM)
Onboard logic:
Toshiba 344S0081-A 1132F0028; Bt 357S0010-A; AMD AM27C128-205PC (ROM)

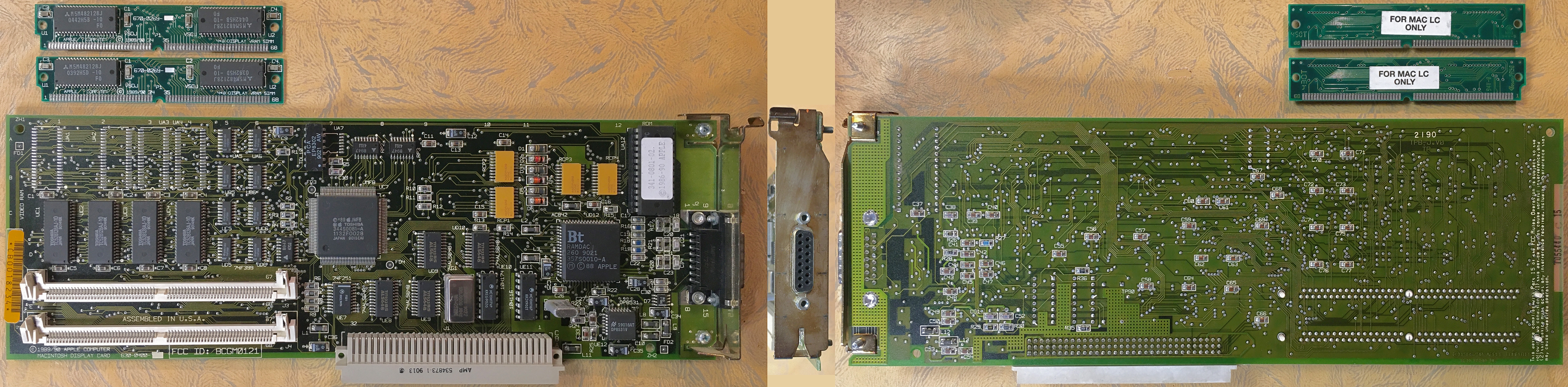

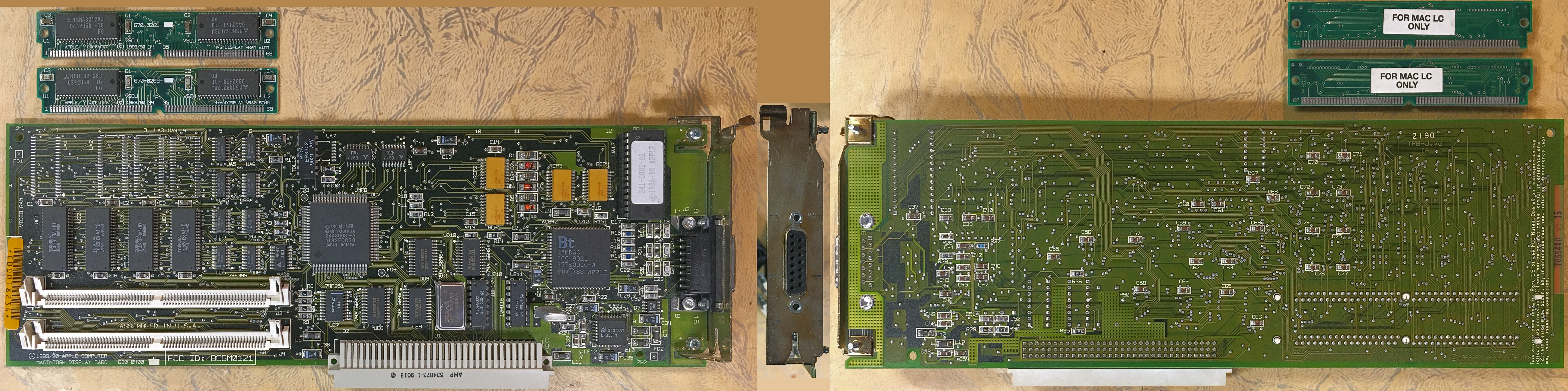

Description:
NuBus card provides video output with a maximum 1152x870 at 4-bit or 8-bit (expanded) color, 640x480 at 8-bit or 24-bit (expanded) color. 832x624 at 4-bit or 8-bit (expanded) color is supported with Rev B ROM only. This is the last card to support MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors. Card is not accelerated but supports being accelerated by a host card via NuBus block transfer. Also supports portrait and two-page displays in 4-bit or 8-bit (expanded) grayscale.
Identifying Numbers:
Macintosh Display Card 4•8; 820-0400-06; 630-0400-; BCGM0121; 670-0269- (SIMMs); 341-0801-02 (ROM)
Onboard logic:
Toshiba 344S0081-A 1132F0028; Bt 357S0010-A; AMD AM27C128-205PC (ROM)
(alternate photo)
NuBus card provides video output with a maximum 1152x870 at 4-bit or 8-bit (expanded) color, 640x480 at 8-bit or 24-bit (expanded) color. 832x624 at 4-bit or 8-bit (expanded) color is supported with Rev B ROM only. This is the last card to support MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors. Card is not accelerated but supports being accelerated by a host card via NuBus block transfer. Also supports portrait and two-page displays in 4-bit or 8-bit (expanded) grayscale.
Identifying Numbers:
Macintosh Display Card 4•8; 820-0400-06; 630-0400-; BCGM0121; 670-0269- (SIMMs); 341-0801-02 (ROM)
Onboard logic:
Toshiba 344S0081-A 1132F0028; Bt 357S0010-A; AMD AM27C128-205PC (ROM)
(alternate photo)

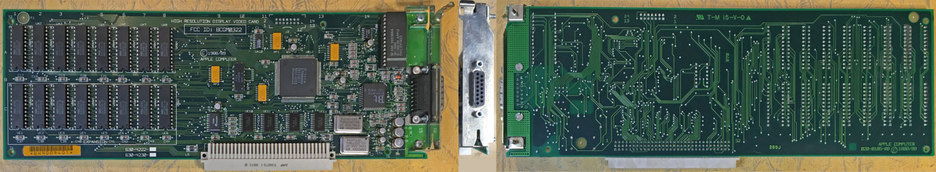

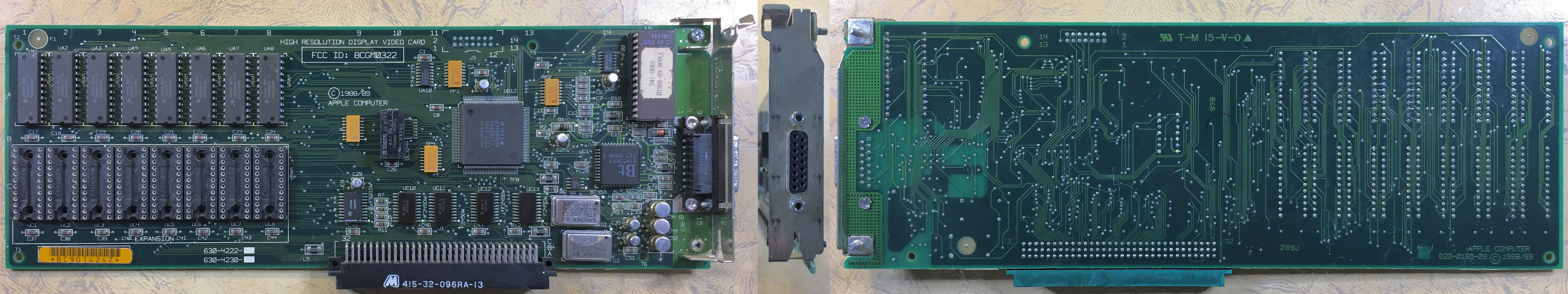

Description:

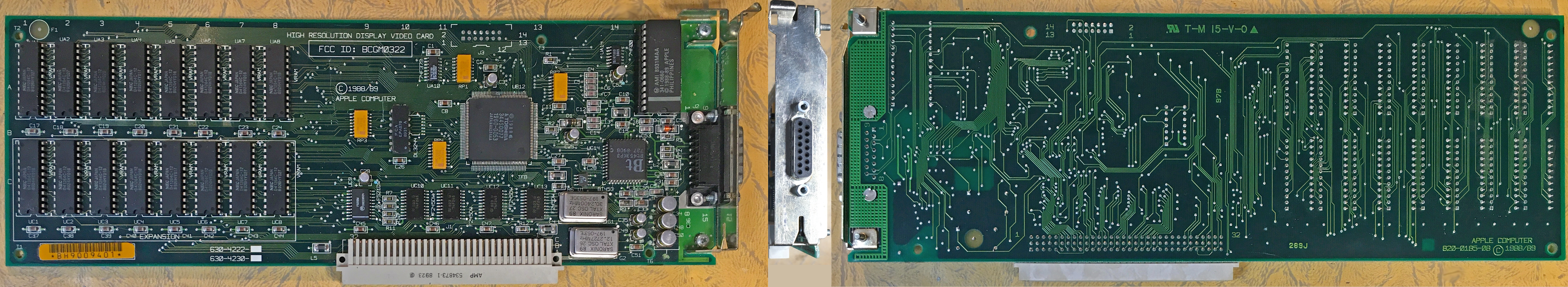

NuBus card provides unaccelerated video output at 512x384 or 640x480 with 8-bit color. Was available in 4-bit (expandable) and 8-bit (expanded) configurations. 8-bit example above. Supports MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors.
Identifying Numbers:
Macintosh II High Resolution Display Video Card; 630-4222-; 630-4230-; 820-0185-08; BCGM0322; 341-0660 (ROM)
Onboard logic:
Toshiba 344S0077 1960-0053 (Apple); Bt Bt453KPJ 727 8908 C
Performance data: IIfx
NuBus card provides unaccelerated video output at 512x384 or 640x480 with 8-bit color. Was available in 4-bit (expandable) and 8-bit (expanded) configurations. 8-bit example above. Supports MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors.
Identifying Numbers:
Macintosh II High Resolution Display Video Card; 630-4222-; 630-4230-; 820-0185-08; BCGM0322; 341-0660 (ROM)
Onboard logic:
Toshiba 344S0077 1960-0053 (Apple); Bt Bt453KPJ 727 8908 C
Performance data: IIfx
Description:

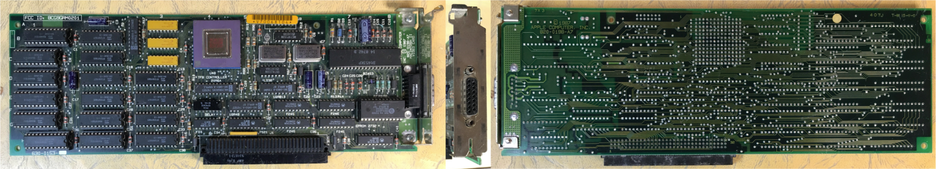

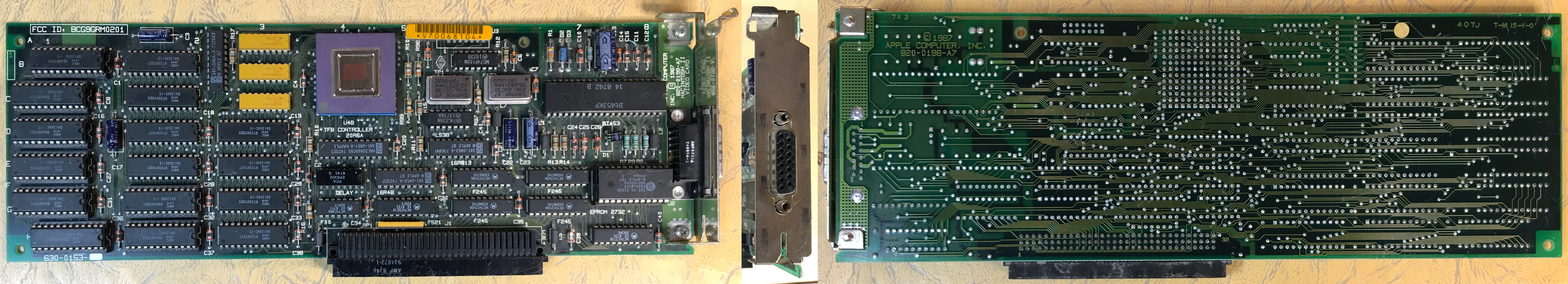

NuBus card provides unaccelerated video output at 640x480 with 8-bit color. Was available in 4-bit (expandable) and 8-bit (expanded) models. 8-bit example above. Supports MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors.
Identifying Numbers:
Macintosh II Video Card; Toby frame buffer; 820-0198-A7; 630-0153-; BCG9GRM0201
Onboard logic:
Toshiba TFB 344-0001 TC19G060AY 0011; Bt Bt453KP
Performance data: IIfx
NuBus card provides unaccelerated video output at 640x480 with 8-bit color. Was available in 4-bit (expandable) and 8-bit (expanded) models. 8-bit example above. Supports MaxAppleZoom 704x512 on AppleColor High Resolution RGB Monitors.
Identifying Numbers:
Macintosh II Video Card; Toby frame buffer; 820-0198-A7; 630-0153-; BCG9GRM0201
Onboard logic:
Toshiba TFB 344-0001 TC19G060AY 0011; Bt Bt453KP
Performance data: IIfx
Description:

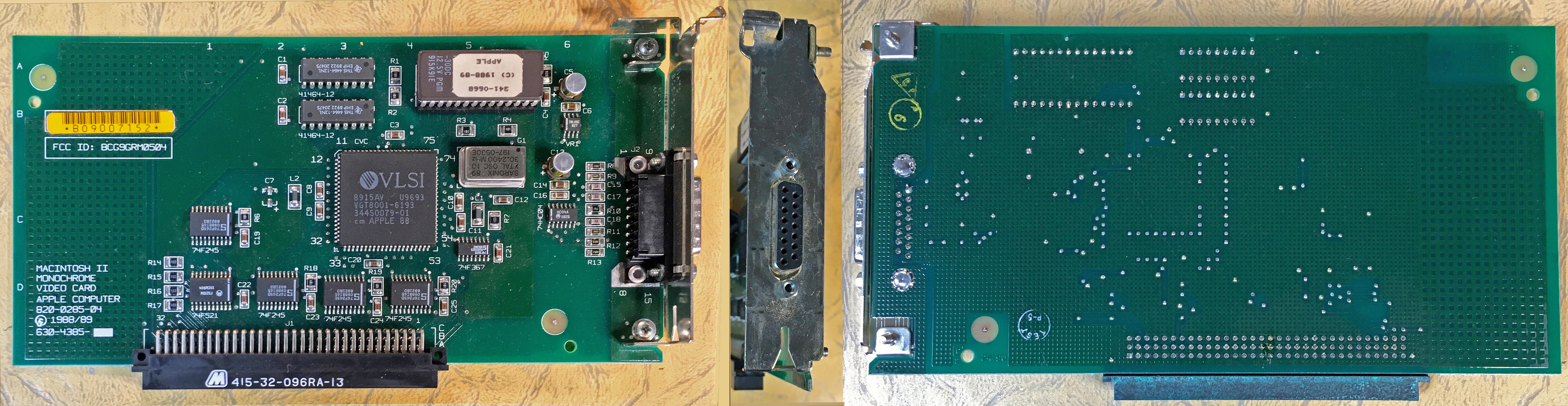

NuBus Card provides unaccelerated video output at 640x480, 1-bit per pixel. Reported to be incompatible with the AV Quadras.
Identifying Numbers:
820-0285-04; 630-4385-; Macintosh II Monochrome Video Card; BCG9GRM0504; 341-0668 (ROM)
Onboard logic:
VLSI 8915AV U9693 VGT8001-6193 344S0079-01; AMD AM2764A -30DC (ROM)
NuBus Card provides unaccelerated video output at 640x480, 1-bit per pixel. Reported to be incompatible with the AV Quadras.
Identifying Numbers:
820-0285-04; 630-4385-; Macintosh II Monochrome Video Card; BCG9GRM0504; 341-0668 (ROM)
Onboard logic:
VLSI 8915AV U9693 VGT8001-6193 344S0079-01; AMD AM2764A -30DC (ROM)
Description:

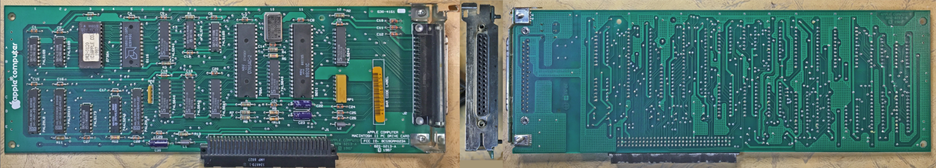

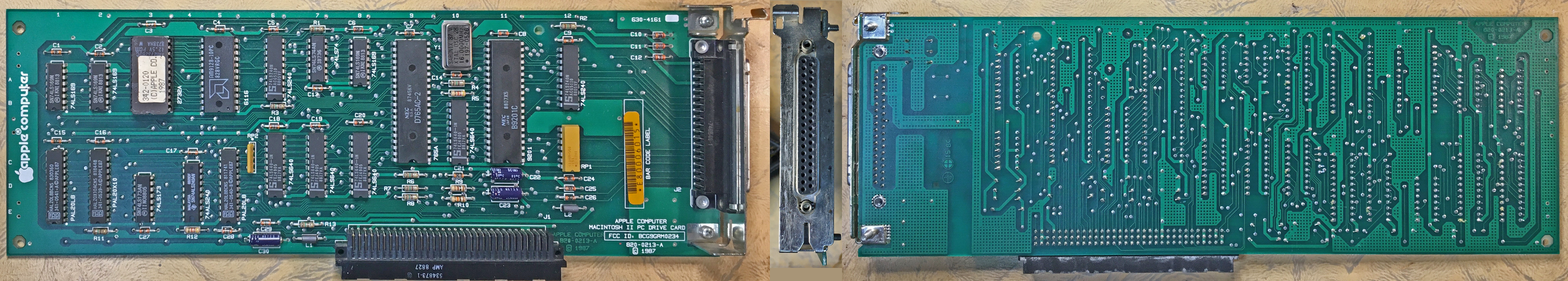

NuBus card provides 5.25" MS-DOS format floppy drive support via external DC-37 port.
Identifying Numbers:
Macintosh II PC Drive Card; 820-0213-A; 630-4161; BCG9GRM0234; Emerald City; 342-0120 (ROM)
Onboard logic:
NEC D756AC-2; NEC B9201C; AMD AM9128-10PC 828VRGC; AMD AM2732BDC (ROM)
NuBus card provides 5.25" MS-DOS format floppy drive support via external DC-37 port.
Identifying Numbers:
Macintosh II PC Drive Card; 820-0213-A; 630-4161; BCG9GRM0234; Emerald City; 342-0120 (ROM)
Onboard logic:
NEC D756AC-2; NEC B9201C; AMD AM9128-10PC 828VRGC; AMD AM2732BDC (ROM)
Description:

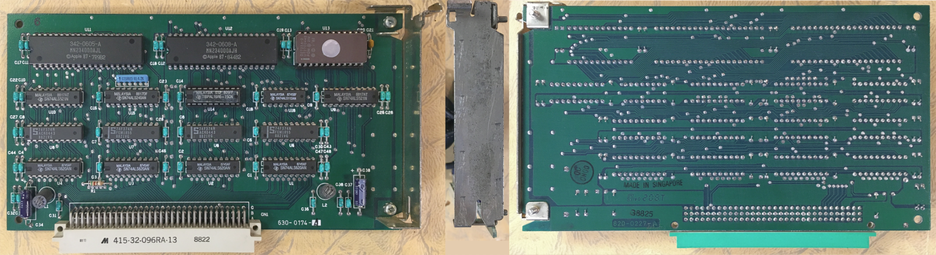

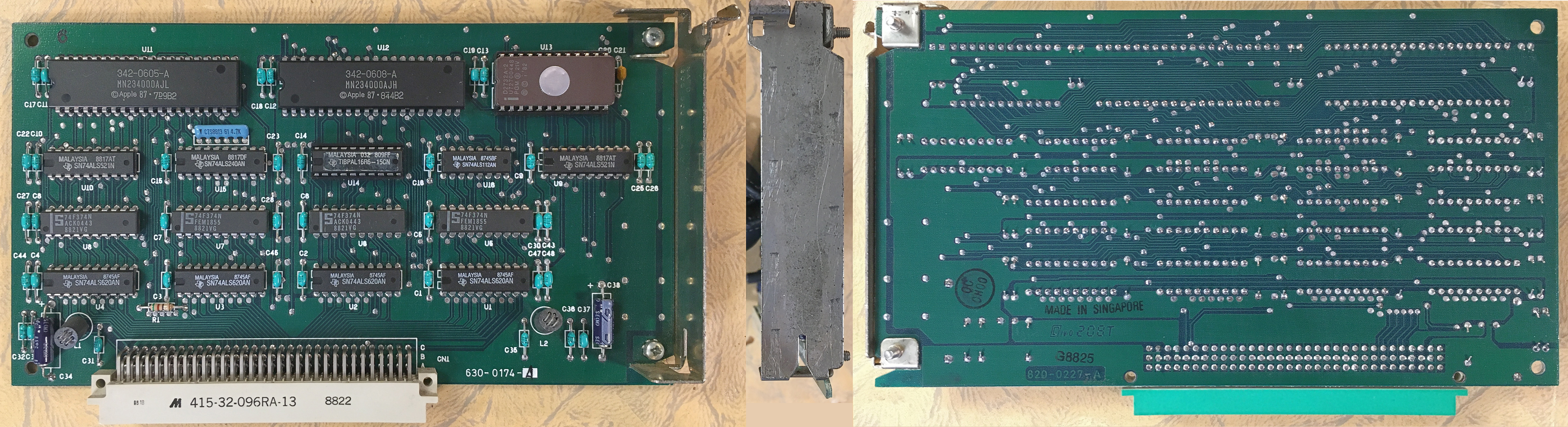

NuBus card provides Macintosh II with KanjiTalk fonts via supplemental ROM.
Identifying Numbers:
820-0227-A; 630-0174-A; G8825; Macintosh II Kanji ROM Card; KanjiTalk Font Card (ROM)
Onboard logic:
Apple 342-0605-A MN234000AJL; Apple 342-0608-A MN234000AJH; Intel D2732A-2 U7270044S (ROM)
NuBus card provides Macintosh II with KanjiTalk fonts via supplemental ROM.
Identifying Numbers:
820-0227-A; 630-0174-A; G8825; Macintosh II Kanji ROM Card; KanjiTalk Font Card (ROM)
Onboard logic:
Apple 342-0605-A MN234000AJL; Apple 342-0608-A MN234000AJH; Intel D2732A-2 U7270044S (ROM)
Description:

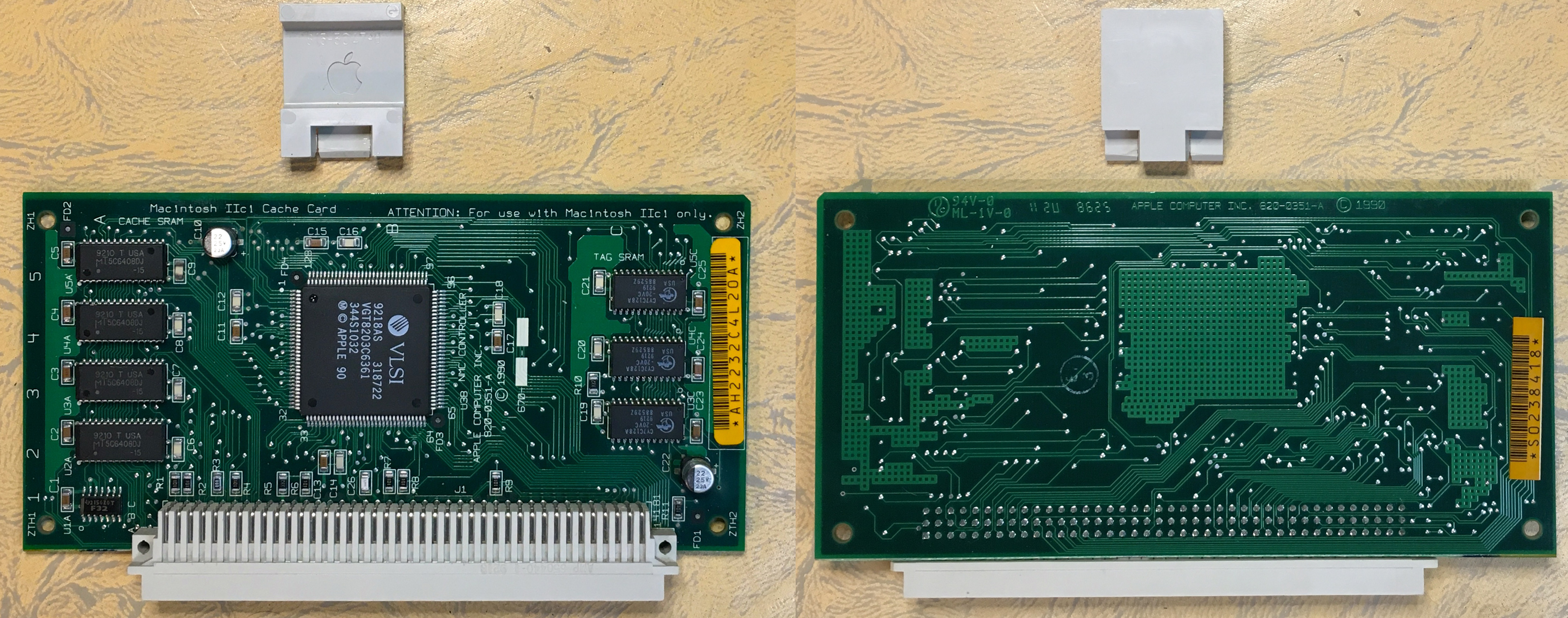

IIci Cache card provides 32k of static RAM cache. This optional factory upgrade reportedly yielded up to 50% performance benefit. Larger caches performed even better, though far less than linearly. Only works with the Macintosh IIci. OEM case bracket attached on this example.
Identifying Numbers:
Macintosh IIci Cache Card; 820-0351-A; 670-
Onboard logic:
VLSI 9218AS 318722 VGT8203C6361 344S1032 (Apple); Micron 9210 T 5C6408DJ (x4); Cypress CY7C128A -20VC 9219 88529Z (x3)
Performance data: IIci
IIci Cache card provides 32k of static RAM cache. This optional factory upgrade reportedly yielded up to 50% performance benefit. Larger caches performed even better, though far less than linearly. Only works with the Macintosh IIci. OEM case bracket attached on this example.
Identifying Numbers:
Macintosh IIci Cache Card; 820-0351-A; 670-
Onboard logic:
VLSI 9218AS 318722 VGT8203C6361 344S1032 (Apple); Micron 9210 T 5C6408DJ (x4); Cypress CY7C128A -20VC 9219 88529Z (x3)
Performance data: IIci
Description:

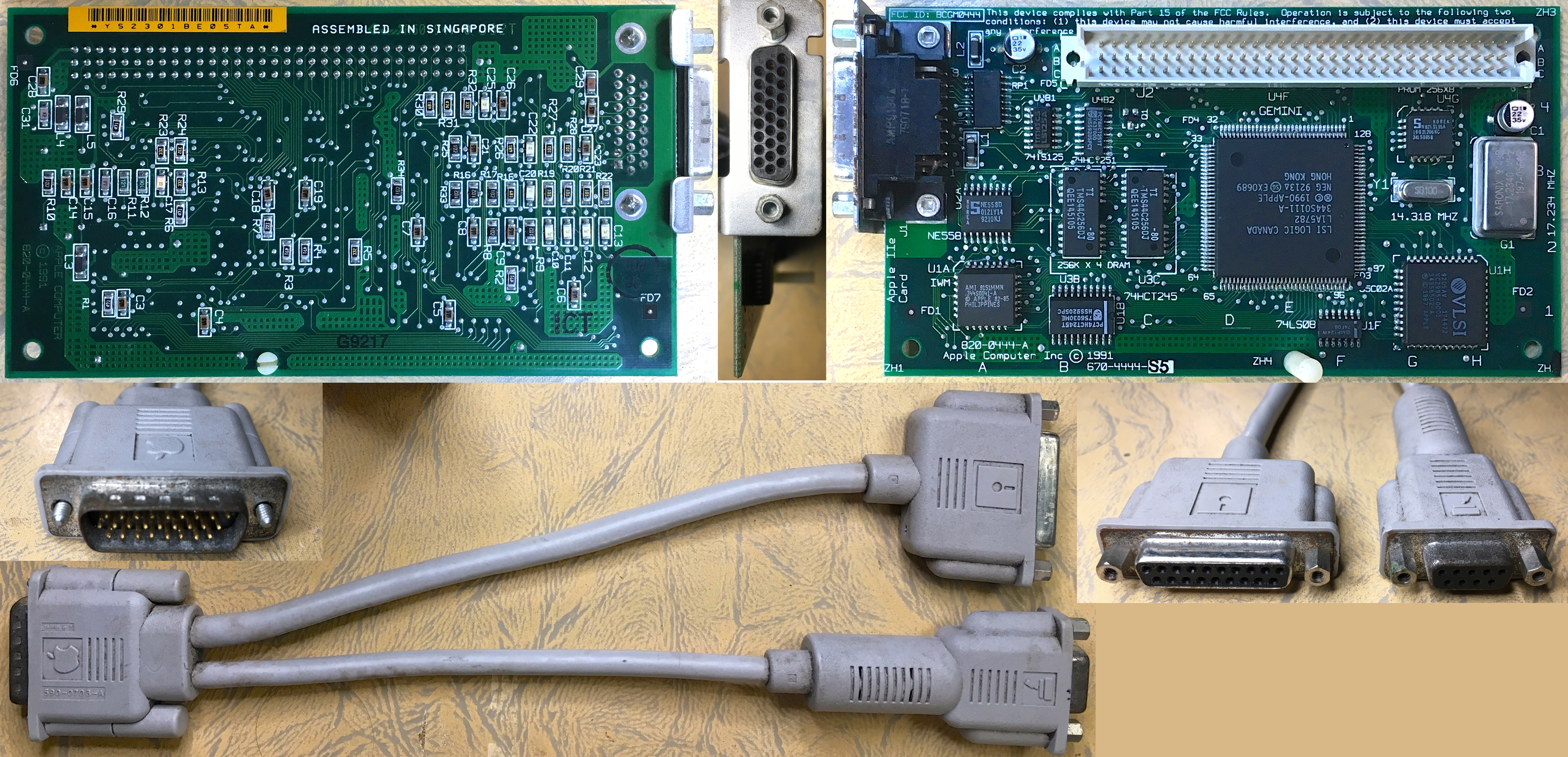

LC PDS card provides complete Apple IIe hardware environment with breakout cable for joystick and 5.25" disk drive ports (pictured.) Runs on any Mac which supports 24-bit addressing and has LC PDS.
Identifying Numbers:
Apple IIe Card; 820-0444-A; 670-4444-S5; BCGM0444; 590-0703-A (Y-cable)
Onboard logic:
LSI L1A5782 344S0111-A; VLSI 9205AV 174472 VC2995-0001 343S6502-A; AMI 344S0041-A
LC PDS card provides complete Apple IIe hardware environment with breakout cable for joystick and 5.25" disk drive ports (pictured.) Runs on any Mac which supports 24-bit addressing and has LC PDS.
Identifying Numbers:
Apple IIe Card; 820-0444-A; 670-4444-S5; BCGM0444; 590-0703-A (Y-cable)
Onboard logic:
LSI L1A5782 344S0111-A; VLSI 9205AV 174472 VC2995-0001 343S6502-A; AMI 344S0041-A
Description:

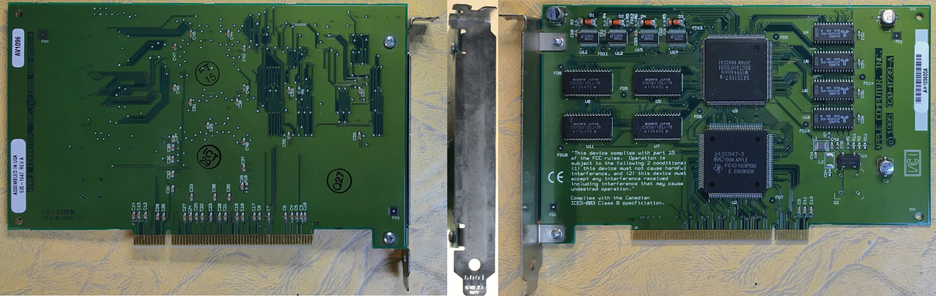

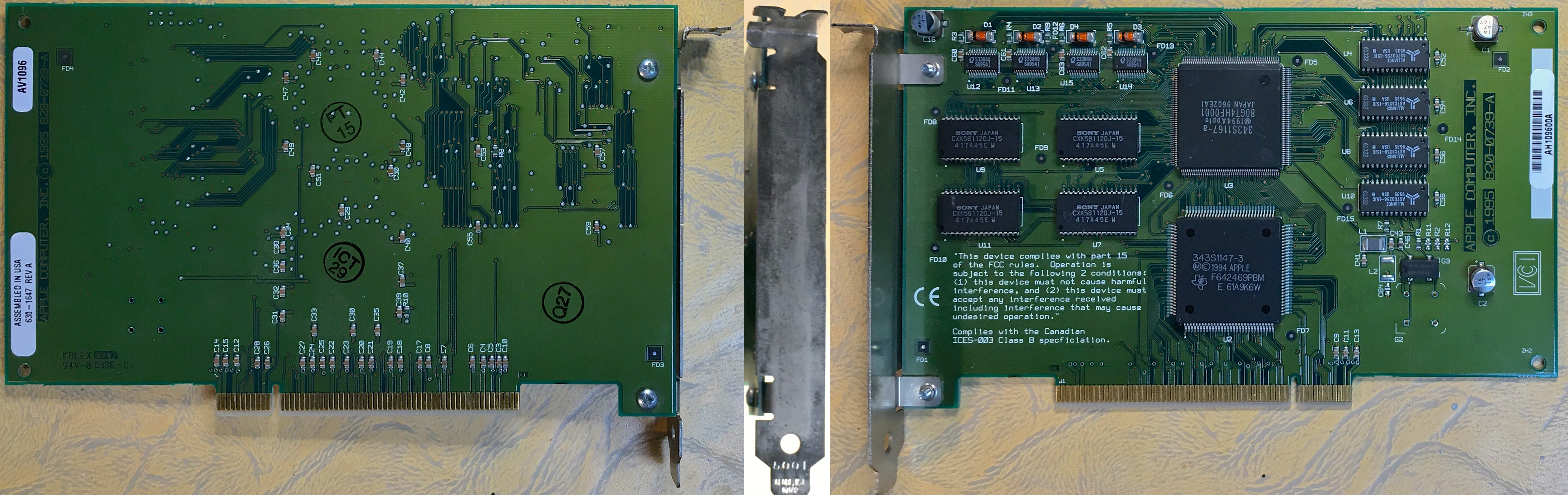

5v 32-bit PCI card enables hardware accelerated QuickDraw 3D functions on PCI based Power Macintosh computers.
Identifying Numbers:
QuickDraw 3D Accelerator Card; 820-0739-A; 630-1647 REV A; AV1096; AH109600A
Onboard logic:
TI 343S1147-3 F642469BPM E 61A9K6W (Apple); Apple 343S1167-a 80GT4HF0001 9602EAI
5v 32-bit PCI card enables hardware accelerated QuickDraw 3D functions on PCI based Power Macintosh computers.
Identifying Numbers:
QuickDraw 3D Accelerator Card; 820-0739-A; 630-1647 REV A; AV1096; AH109600A
Onboard logic:
TI 343S1147-3 F642469BPM E 61A9K6W (Apple); Apple 343S1167-a 80GT4HF0001 9602EAI
Description:

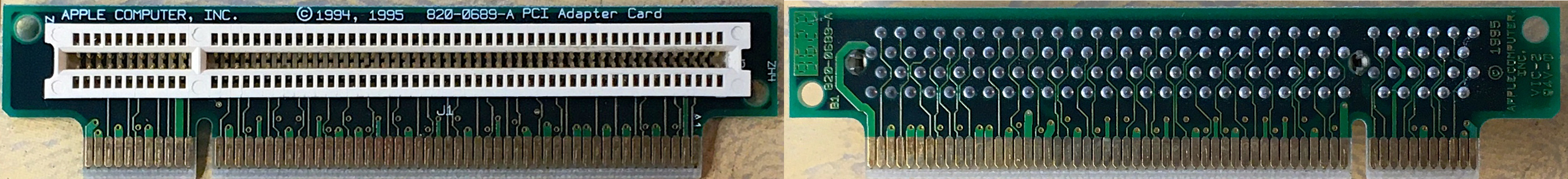

PCI card riser enables one 7" full-height PCI card to be installed in the Performa/PowerMac 6300/160 (6360), 5400, and 5500 machines.
Identifying Numbers:
820-0689-A; PCI Adapter Card
Onboard logic:
none
PCI card riser enables one 7" full-height PCI card to be installed in the Performa/PowerMac 6300/160 (6360), 5400, and 5500 machines.
Identifying Numbers:
820-0689-A; PCI Adapter Card
Onboard logic:
none
Description:

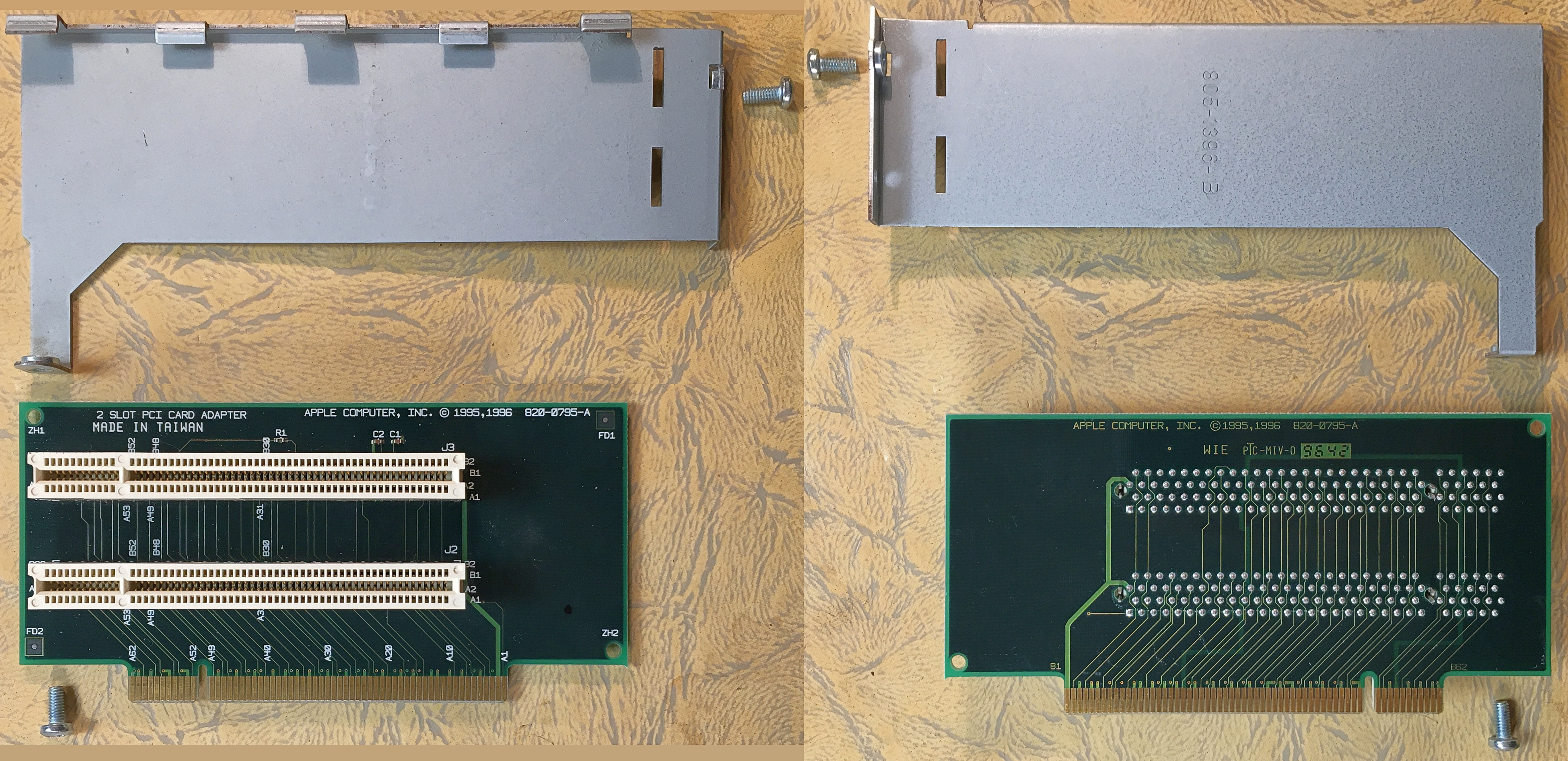

PCI card riser enables two 7" full-height PCI cards to be installed in the Performa/PowerMac 6400 and 6500 machines.
Identifying Numbers:
820-0795-A; 2 Slot PCI Card Adapter; 805-1396-B (support frame)
Onboard logic:
none
PCI card riser enables two 7" full-height PCI cards to be installed in the Performa/PowerMac 6400 and 6500 machines.
Identifying Numbers:
820-0795-A; 2 Slot PCI Card Adapter; 805-1396-B (support frame)
Onboard logic:
none
Description:

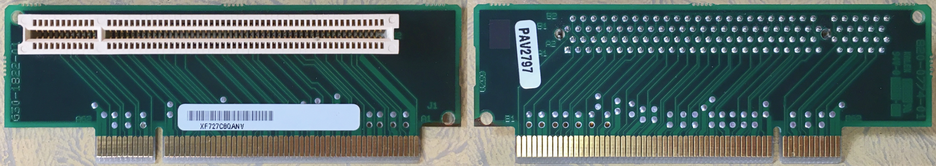

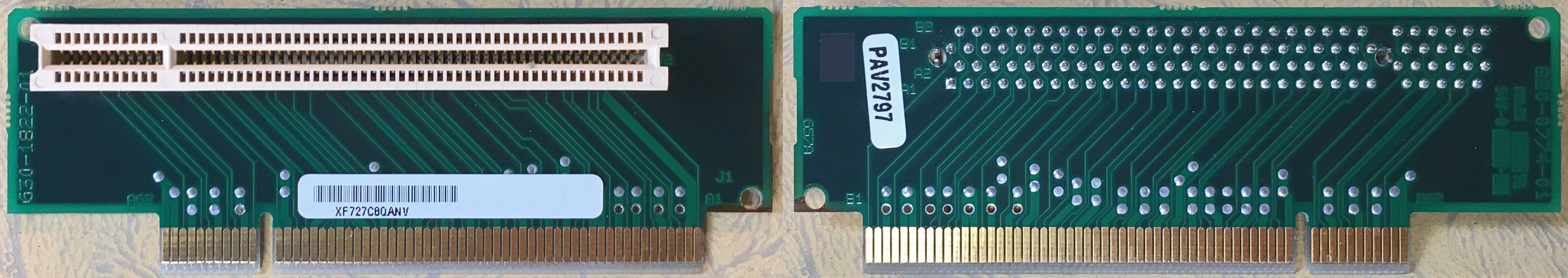

PCI card riser enables one 7" full-height PCI card to be installed in the Twentieth Anniversary Macintosh, provided the 'fatback' expansion housing is also installed.
Identifying Numbers:
820-0774-01; 630-1822-01; PAV2797
Onboard logic:
none
PCI card riser enables one 7" full-height PCI card to be installed in the Twentieth Anniversary Macintosh, provided the 'fatback' expansion housing is also installed.
Identifying Numbers:
820-0774-01; 630-1822-01; PAV2797
Onboard logic:
none

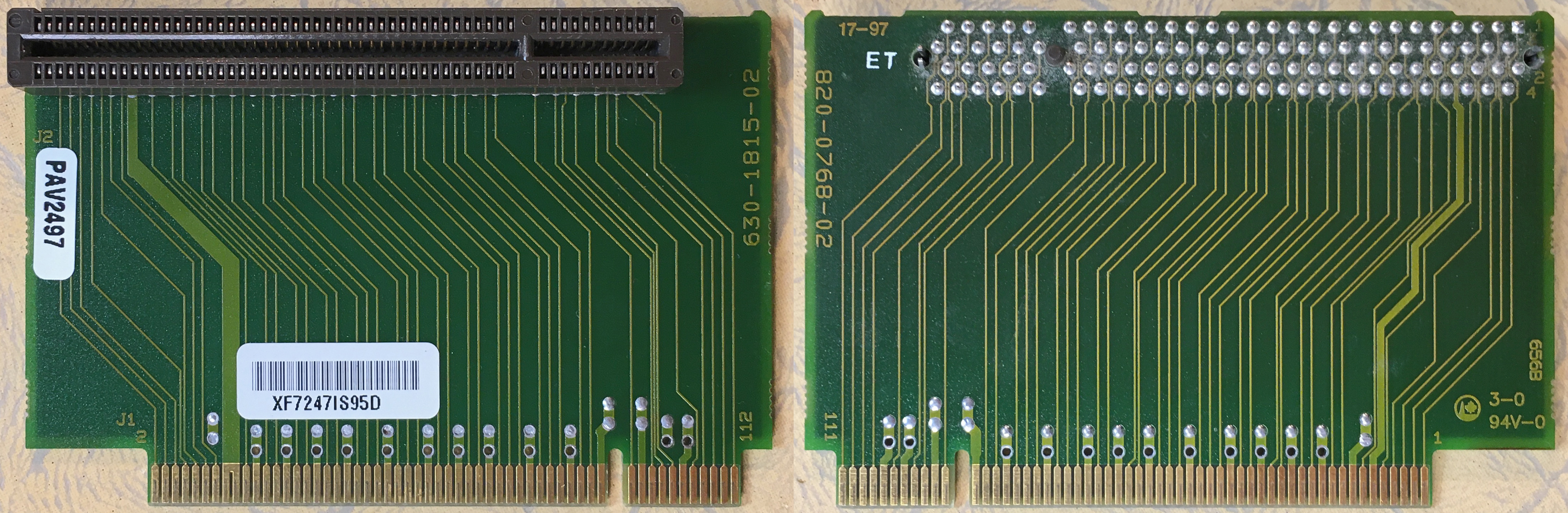

Comm Slot II riser enables one CSII card to be installed in the Twentieth Anniversary Macintosh, provided the 'fatback' expansion housing is also installed.
Identifying Numbers:
820-0768-02; 630-1815-02; PAV2497
Onboard logic:
none
Identifying Numbers:
820-0768-02; 630-1815-02; PAV2497
Onboard logic:
none
Description:

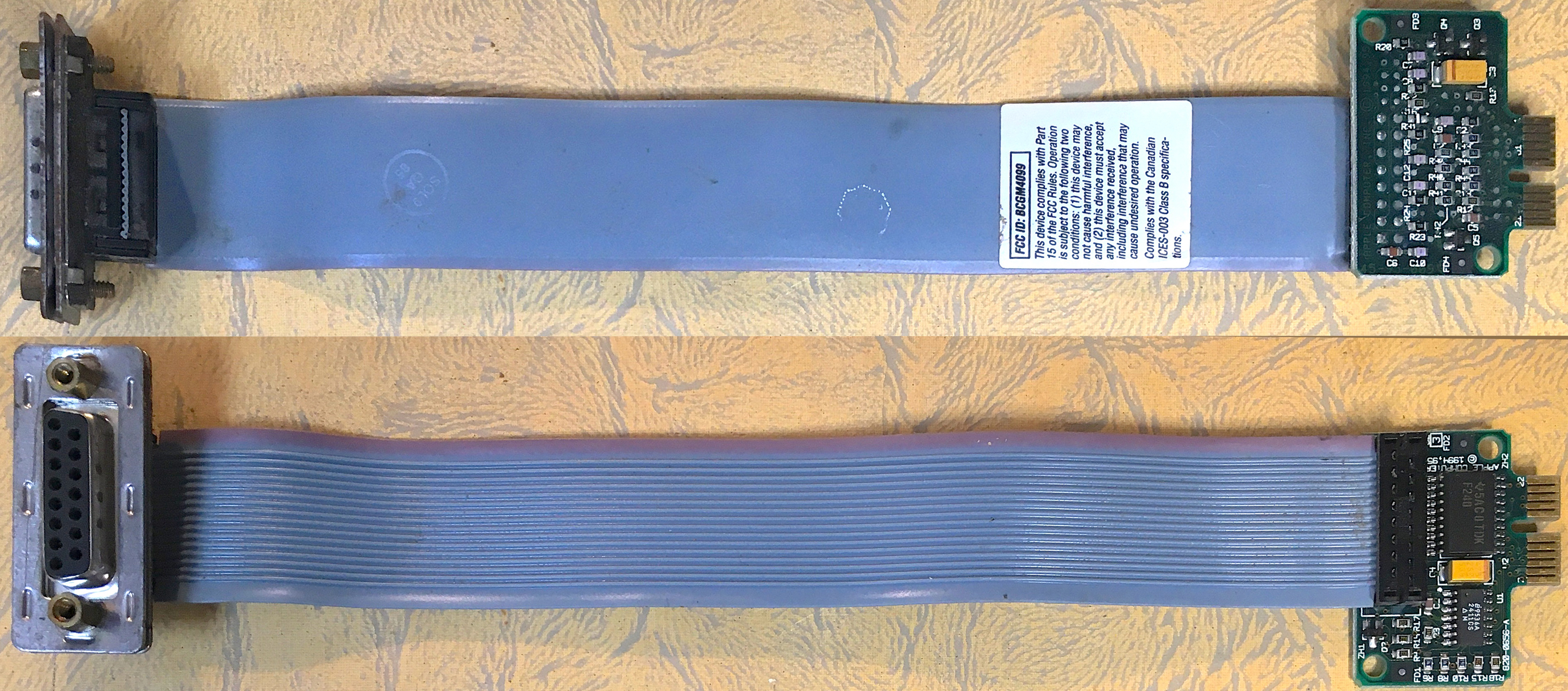

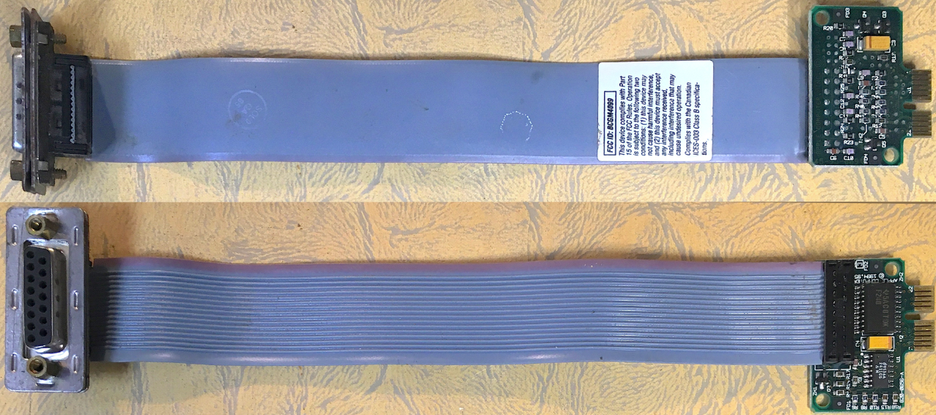

GIMO port expansion board provides mirroring of the main display via external DA-15 port, to be located in the LC PDS blank or "PCI" blank slot on 5xxx/6xxx machines. Works with TAM but has no factory mounting point for the port bezel.
Identifying Numbers:
820-0656-A; BCGM4099
Onboard logic:
TI 5AC0TDK F240
GIMO port expansion board provides mirroring of the main display via external DA-15 port, to be located in the LC PDS blank or "PCI" blank slot on 5xxx/6xxx machines. Works with TAM but has no factory mounting point for the port bezel.
Identifying Numbers:
820-0656-A; BCGM4099
Onboard logic:
TI 5AC0TDK F240
Description:

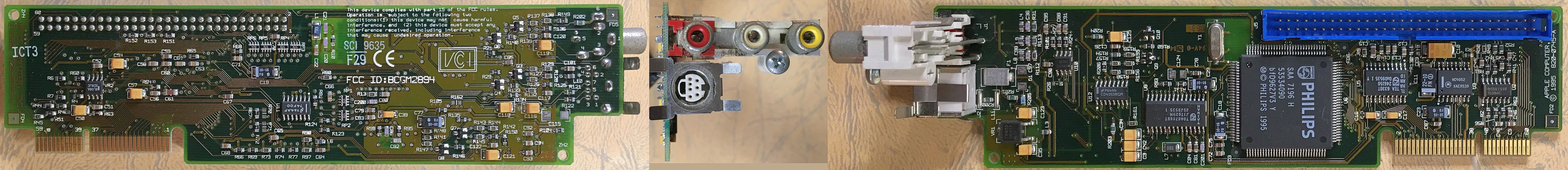

Video In slot board provides composite and S-Video inputs, as well as synced balanced stereo input and internal DAV connector for additional hardware. When installed, the host machine's tuner connector can be used. Compatible with Performa/LC/Quadra 580, 630-640, PowerMac 5xxx, and 6xxx macines. Later version (pictured) with 60-pin DAV connector. Earlier version has 34-pin connector. 34-pin peripherals can be adapted to 60-pin video-in cards using a passive adapter cable.
Identifying Numbers:
Video-In Board; 820-0745-A; BCGM2894
Onboard logic:
Philips SAA 7196 H; Philips TDA8708BT J17629M JSJ9535 1; Philips TEA 6330T 246150 DnD9535 1 Y
Video In slot board provides composite and S-Video inputs, as well as synced balanced stereo input and internal DAV connector for additional hardware. When installed, the host machine's tuner connector can be used. Compatible with Performa/LC/Quadra 580, 630-640, PowerMac 5xxx, and 6xxx macines. Later version (pictured) with 60-pin DAV connector. Earlier version has 34-pin connector. 34-pin peripherals can be adapted to 60-pin video-in cards using a passive adapter cable.
Identifying Numbers:
Video-In Board; 820-0745-A; BCGM2894
Onboard logic:
Philips SAA 7196 H; Philips TDA8708BT J17629M JSJ9535 1; Philips TEA 6330T 246150 DnD9535 1 Y
Description:

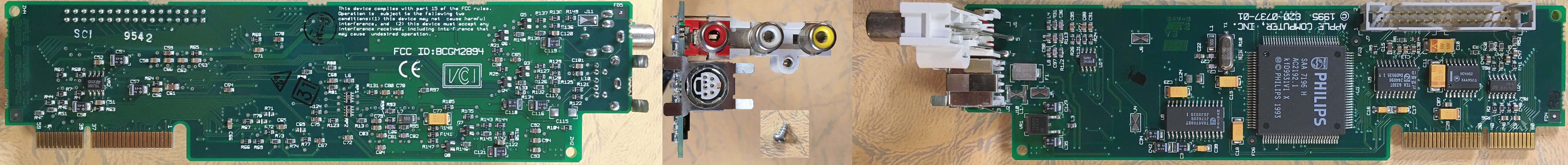

Video In slot board provides composite and S-Video inputs, as well as synced balanced stereo input and internal DAV connector for additional hardware. When installed, the host machine's tuner connector can be used. Compatible with Performa/LC/Quadra 580, 630-640, PowerMac 5xxx, and 6xxx macines. Earlier version (pictured) with 34-pin connector. Later version has 60-pin DAV connector. 34-pin peripherals can be adapted to 60-pin video-in cards using a passive adapter cable.
Identifying Numbers:
Video-In Board; 820-0737-01; BCGM2894
Onboard logic:
Philips SAA 7196 H; Philips TDA8708BT J17628B JSJ9535 1; Philips TEA 6330T 244090 DnD9535 1 Y
Video In slot board provides composite and S-Video inputs, as well as synced balanced stereo input and internal DAV connector for additional hardware. When installed, the host machine's tuner connector can be used. Compatible with Performa/LC/Quadra 580, 630-640, PowerMac 5xxx, and 6xxx macines. Earlier version (pictured) with 34-pin connector. Later version has 60-pin DAV connector. 34-pin peripherals can be adapted to 60-pin video-in cards using a passive adapter cable.
Identifying Numbers:
Video-In Board; 820-0737-01; BCGM2894
Onboard logic:
Philips SAA 7196 H; Philips TDA8708BT J17628B JSJ9535 1; Philips TEA 6330T 244090 DnD9535 1 Y
Description:

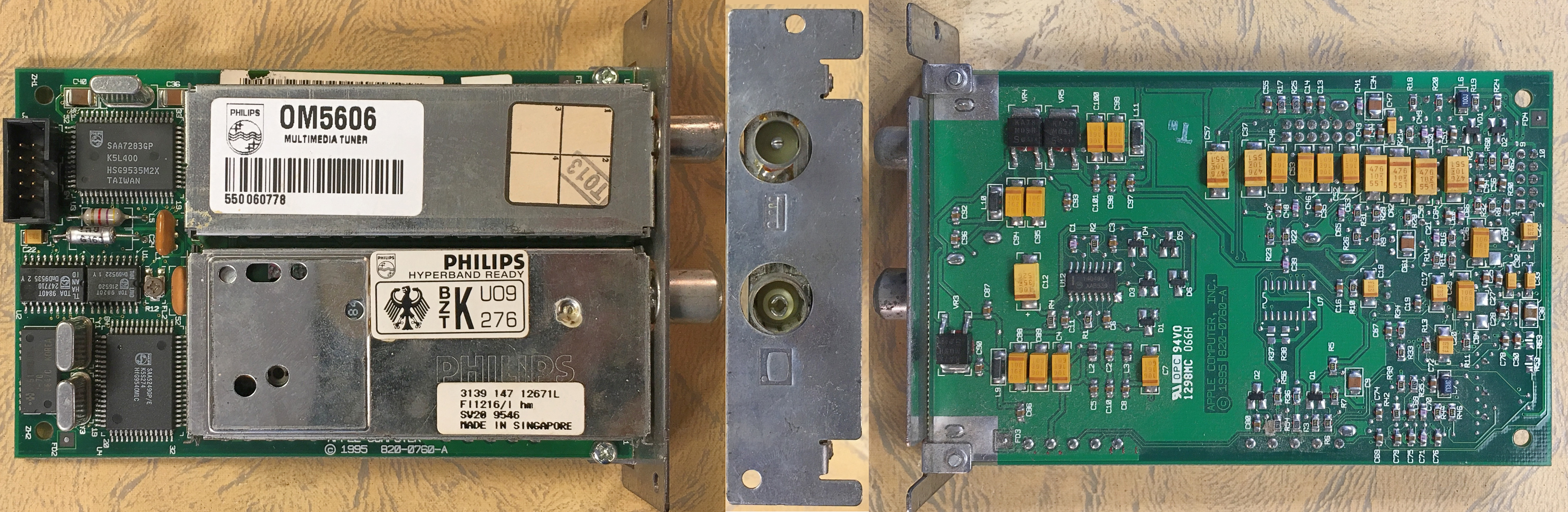

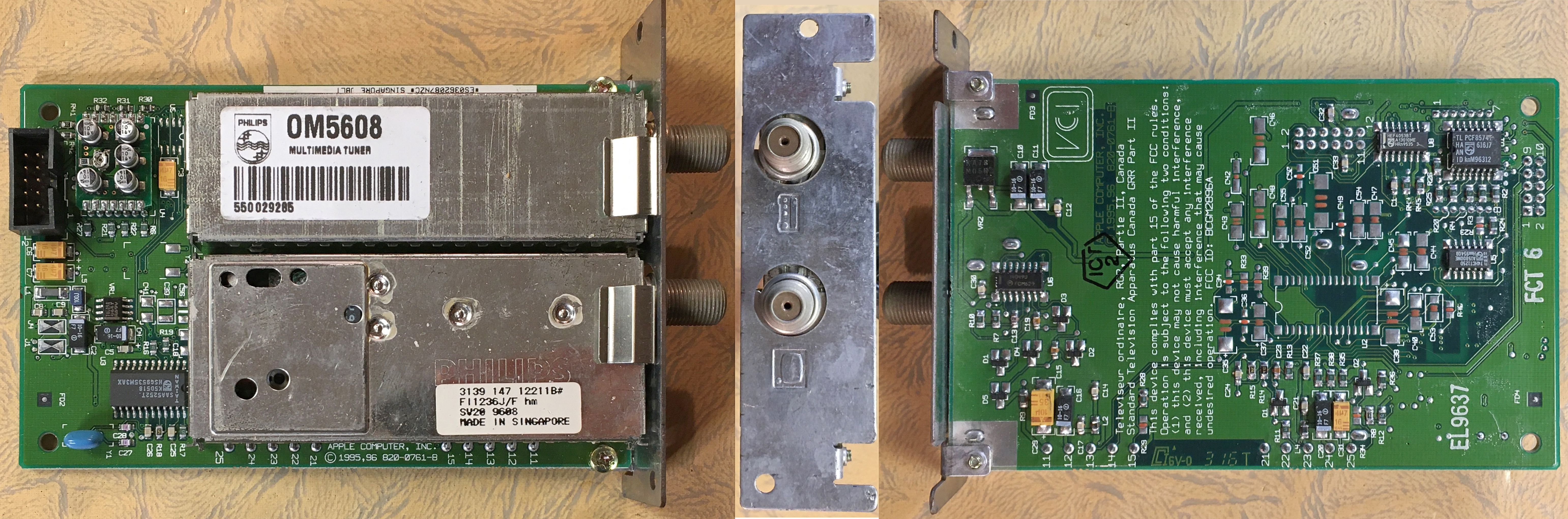

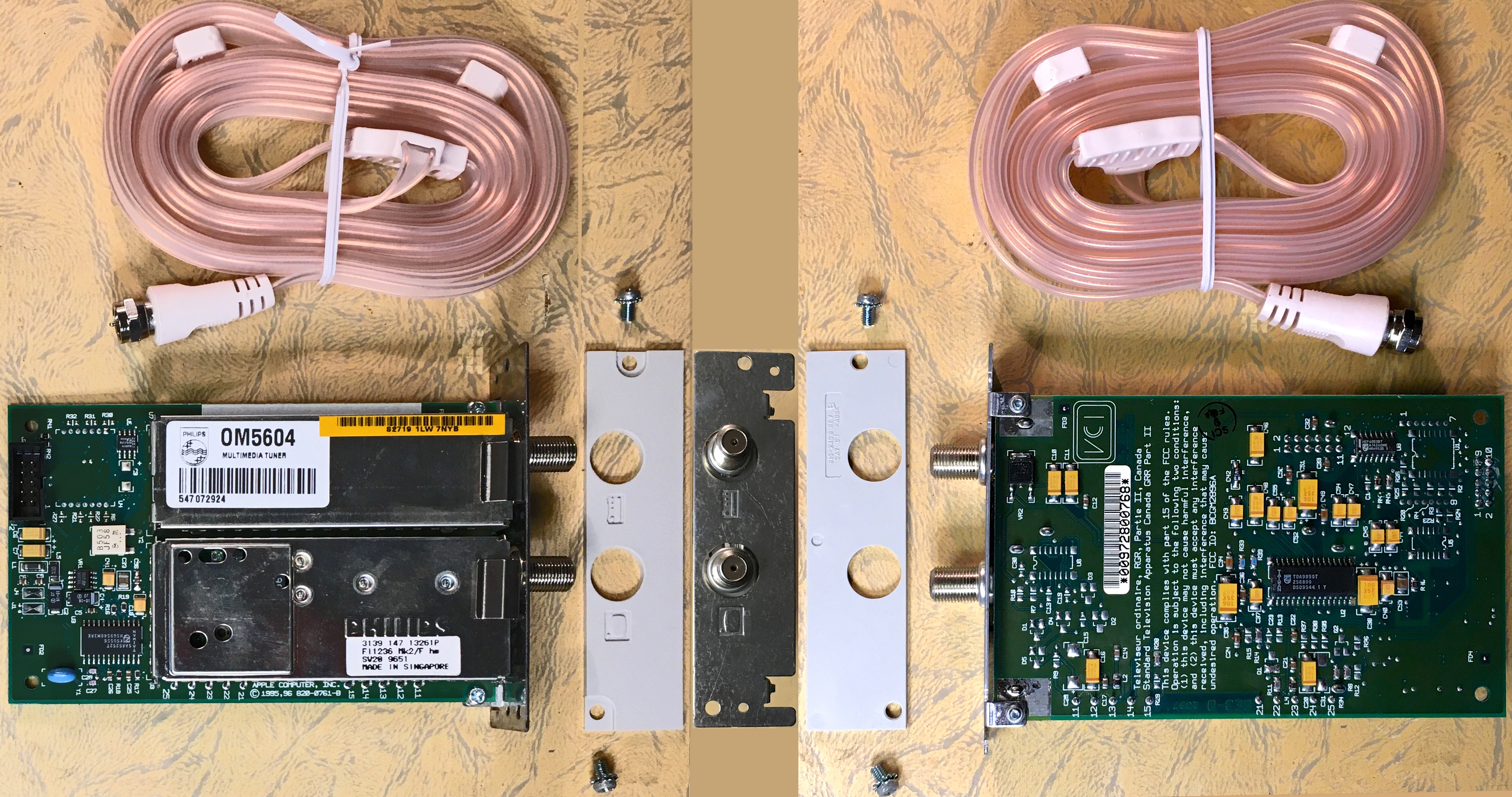

10-pin Tuner card provides both 108-channel VHF/UHF NTSC television tuner and FM radio tuner. (North American market) Some older Macintosh 5xxx series machines require an updated rear bezel to accomodate the second coaxial jack. Requires LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s.
Identifying Numbers:
TV/FM Radio System; 820-0761-B; BCGM2896A; 815-2458 REV B (630-640; 6200-6500 bezel)
Onboard logic:
Philips SAA5252T K50556; Philips TDA985QT 256890; Philips HEF4053BT; Philips 3139 147 13261P FI1236 Mk2/F hn SV20 9651; Philips OM5604 547072924
10-pin Tuner card provides both 108-channel VHF/UHF NTSC television tuner and FM radio tuner. (North American market) Some older Macintosh 5xxx series machines require an updated rear bezel to accomodate the second coaxial jack. Requires LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s.
Identifying Numbers:
TV/FM Radio System; 820-0761-B; BCGM2896A; 815-2458 REV B (630-640; 6200-6500 bezel)
Onboard logic:
Philips SAA5252T K50556; Philips TDA985QT 256890; Philips HEF4053BT; Philips 3139 147 13261P FI1236 Mk2/F hn SV20 9651; Philips OM5604 547072924
Description:
10-pin Tuner card provides both 108-channel VHF/UHF NTSC television tuner and FM radio tuner. (European market) Some older Macintosh 5xxx series machines require an updated rear bezel to accomodate the second coaxial jack. Requires LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s.
Identifying Numbers:
TV/FM Radio System; 820-0760-A
Onboard logic:
Philips SAA5249GP/E K5S274; Philips TDA 9820T 216520; Philips TDA 9840T 247710; Philips SAA7283GP K5L400; Philips 3139 147 12671L FI1216/I hm SV20 9546; Philips OM5606 550060778
10-pin Tuner card provides both 108-channel VHF/UHF NTSC television tuner and FM radio tuner. (European market) Some older Macintosh 5xxx series machines require an updated rear bezel to accomodate the second coaxial jack. Requires LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s.
Identifying Numbers:
TV/FM Radio System; 820-0760-A
Onboard logic:
Philips SAA5249GP/E K5S274; Philips TDA 9820T 216520; Philips TDA 9840T 247710; Philips SAA7283GP K5L400; Philips 3139 147 12671L FI1216/I hm SV20 9546; Philips OM5606 550060778
Description:
10-pin Tuner card provides both 108-channel VHF/UHF NTSC television tuner and FM radio tuner. (Asian market) Some older Macintosh 5xxx series machines require an updated rear bezel to accomodate the second coaxial jack. Requires LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s.
Identifying Numbers:
TV/FM Radio System; 820-0761-B; BCGM2896A
Onboard logic:
Philips SAA5252T K5D518; Philips PCF8574T 616J7; Philips HEF4053BT; Philips 74HCT125D; Motorola 14049U FGM629; Philips 3139 147 12211B# FI1236J/F hm SV20 9608; Philips OM5608 550029285
10-pin Tuner card provides both 108-channel VHF/UHF NTSC television tuner and FM radio tuner. (Asian market) Some older Macintosh 5xxx series machines require an updated rear bezel to accomodate the second coaxial jack. Requires LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s.
Identifying Numbers:
TV/FM Radio System; 820-0761-B; BCGM2896A
Onboard logic:
Philips SAA5252T K5D518; Philips PCF8574T 616J7; Philips HEF4053BT; Philips 74HCT125D; Motorola 14049U FGM629; Philips 3139 147 12211B# FI1236J/F hm SV20 9608; Philips OM5608 550029285
Description:

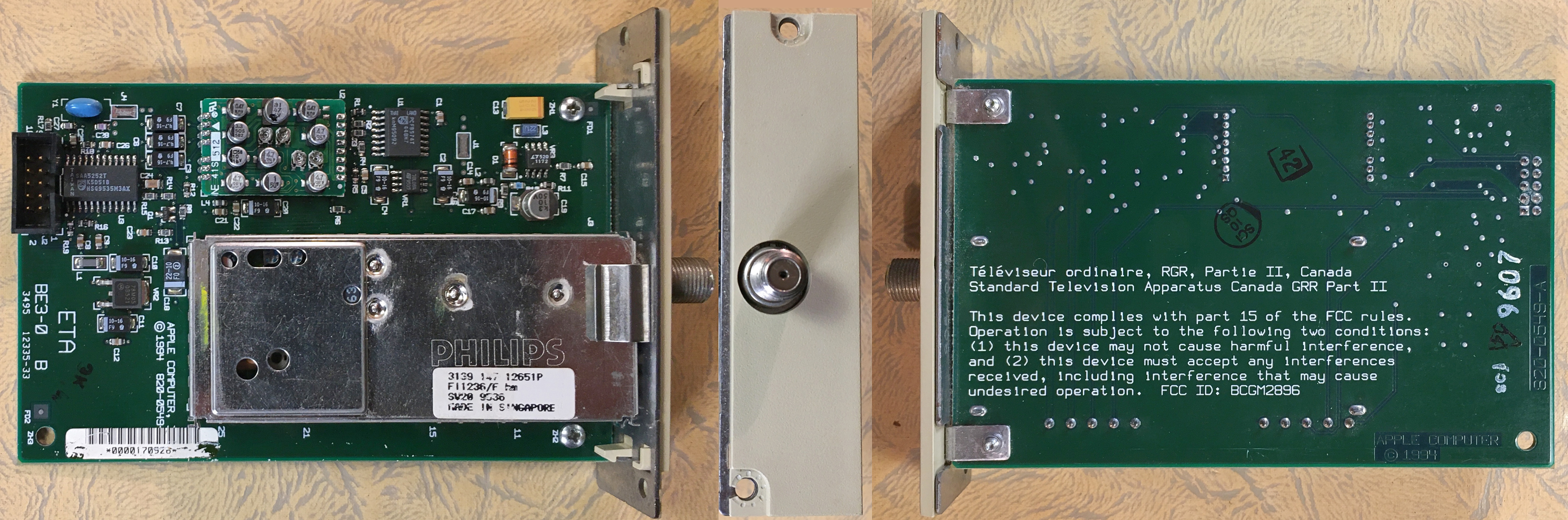

10-pin Tuner card provides 108-channel VHF/UHF NTSC television tuner, used in conjuction with LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s. This model is likely for the US market; need to confirm details. Rear bezel will probably break if I remove it, so it's left installed for this photo.
Identifying Numbers:
TV/Video System; 820-0549-A; BCGM2896; ETA BE3-0 B 3495 12335-33
Onboard logic:
Philips 3139 147 12651P F11236/F hm SV20 9536; Philips SAA5252T K5D518; Philips PCF8574T 448H7
10-pin Tuner card provides 108-channel VHF/UHF NTSC television tuner, used in conjuction with LC630 style video input board or specific variant of 'Wings' personality card in beige PowerMac G3s. This model is likely for the US market; need to confirm details. Rear bezel will probably break if I remove it, so it's left installed for this photo.
Identifying Numbers:
TV/Video System; 820-0549-A; BCGM2896; ETA BE3-0 B 3495 12335-33
Onboard logic:
Philips 3139 147 12651P F11236/F hm SV20 9536; Philips SAA5252T K5D518; Philips PCF8574T 448H7
Description:

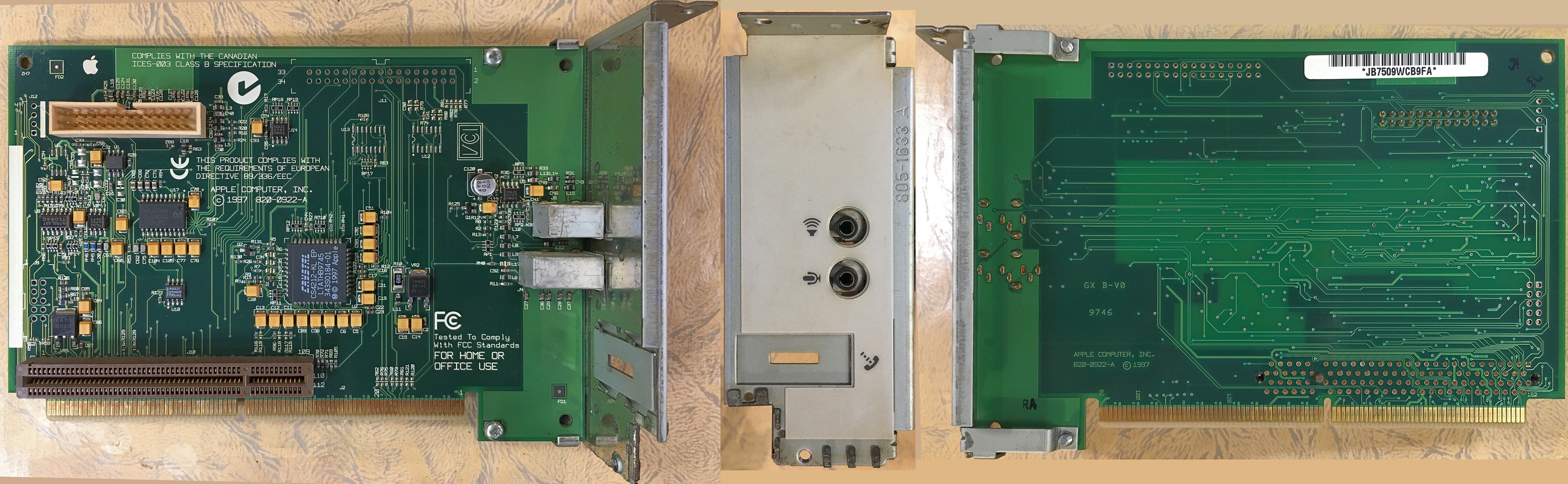

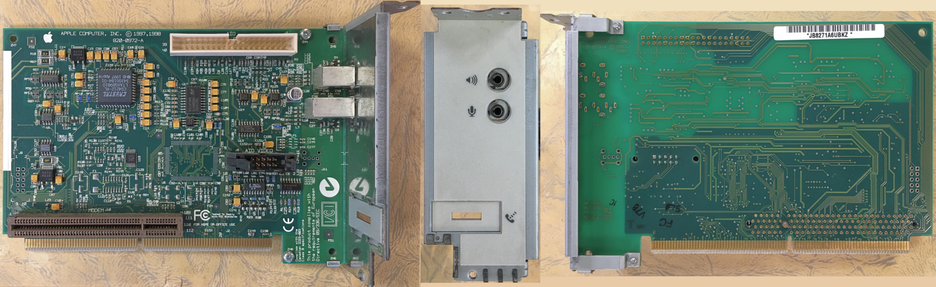

Power Mac G3 Personality (PERCH) card provides audio in/out ports and provides a modified Comm Slot II which only works with 56k modem signaling. This version also provides an internal 26-pin header. This card is referred to as 'Whisper' along with the second variant with AIO support.
Identifying Numbers:
820-0922-A; 805-1633 A (Bracket)
Onboard logic:
Crystal CS4212-KL LTATHB9745 343S0184-01
Power Mac G3 Personality (PERCH) card provides audio in/out ports and provides a modified Comm Slot II which only works with 56k modem signaling. This version also provides an internal 26-pin header. This card is referred to as 'Whisper' along with the second variant with AIO support.
Identifying Numbers:
820-0922-A; 805-1633 A (Bracket)
Onboard logic:
Crystal CS4212-KL LTATHB9745 343S0184-01

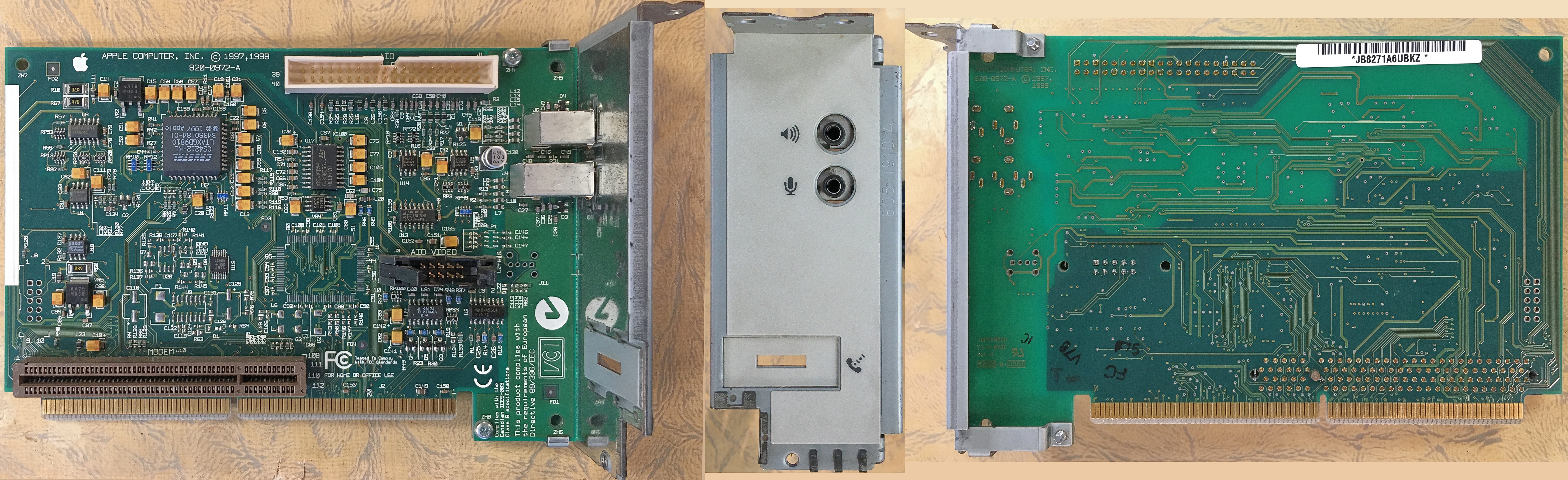

Description:
Power Mac G3 Personality (PERCH) card provides audio in/out ports and provides a modified Comm Slot II which only works with 56k modem signaling. This version provides the intenal monitor connection for All-In-One variants of the Power Mac G3. Internal header also for AIO front panel control/IR. This card is referred to as 'Whisper' along with the above variant without AIO support. This variant includes unpopulated headers for USB controller and port, which can be used if all of the support circuitry is installed.
Identifying Numbers:
820-0972-A; 805-1910 A (Bracket)
Onboard logic:
Crystal CS4212-KL LTAXGB9810 343S0184-01
Power Mac G3 Personality (PERCH) card provides audio in/out ports and provides a modified Comm Slot II which only works with 56k modem signaling. This version provides the intenal monitor connection for All-In-One variants of the Power Mac G3. Internal header also for AIO front panel control/IR. This card is referred to as 'Whisper' along with the above variant without AIO support. This variant includes unpopulated headers for USB controller and port, which can be used if all of the support circuitry is installed.
Identifying Numbers:
820-0972-A; 805-1910 A (Bracket)
Onboard logic:
Crystal CS4212-KL LTAXGB9810 343S0184-01
Description:

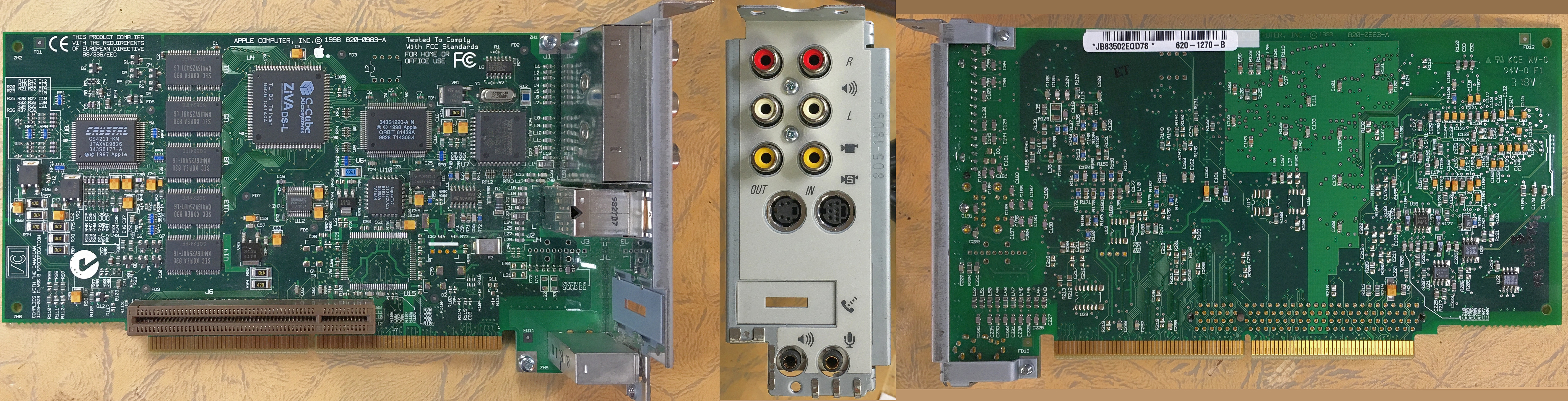

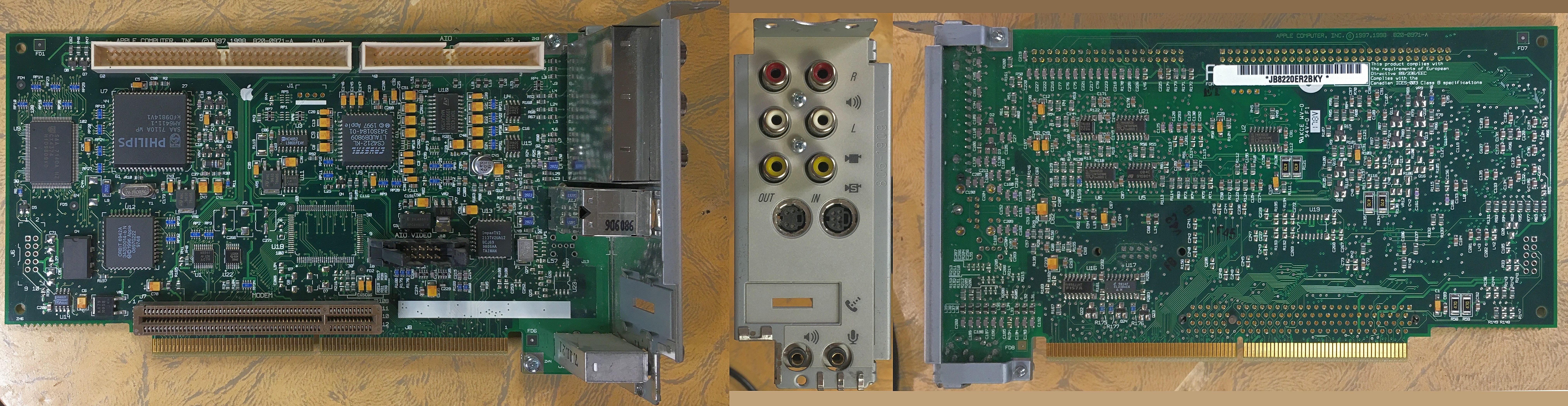

Power Mac G3 Personality (PERCH) card provides audio in/out ports, composite/S-Video input/output ports, and provides a modified Comm Slot II which only works with 56k modem signaling. This version also provides the intenal monitor connection for All-In-One variants of the Power Mac G3. Internal headers also for AIO front panel control/IR and 60-pin DAV connector. Unpopulated headers for internal TV/FM tuner can be used if populated. The same is true of the USB controller, though more support components also need to be populated. This card is also referred to as 'Wings' even though it is not printed in silkscreen as on the other variant.
Identifying Numbers:
820-0971-A
Onboard logic:
Philips SAA 7110A WP AM6411.1 kfD9814V1; Crystal CS4212-KL LTAUDB9809 343S0184-01; Orbit 6942A 343S0014-b N; ImpacTV2 213TV2UA12 BCJ69; Philips SAA 7140A HZ CY4374 HfD9809V0; ST TDA7433D 1990B9810
Power Mac G3 Personality (PERCH) card provides audio in/out ports, composite/S-Video input/output ports, and provides a modified Comm Slot II which only works with 56k modem signaling. This version also provides the intenal monitor connection for All-In-One variants of the Power Mac G3. Internal headers also for AIO front panel control/IR and 60-pin DAV connector. Unpopulated headers for internal TV/FM tuner can be used if populated. The same is true of the USB controller, though more support components also need to be populated. This card is also referred to as 'Wings' even though it is not printed in silkscreen as on the other variant.
Identifying Numbers:
820-0971-A
Onboard logic:
Philips SAA 7110A WP AM6411.1 kfD9814V1; Crystal CS4212-KL LTAUDB9809 343S0184-01; Orbit 6942A 343S0014-b N; ImpacTV2 213TV2UA12 BCJ69; Philips SAA 7140A HZ CY4374 HfD9809V0; ST TDA7433D 1990B9810
Description:
Power Mac G3 Personality (PERCH) card provides audio in/out ports, composite/S-Video input/output ports, and provides a modified Comm Slot II which only works with 56k modem signaling. This version also provides MPEG hardware decompression, which integrates with the G3's onboard ATI RAGE chip for DVD playback. The unpopulated USB controller can be used if populated along with the missing support components. This is often referred to as the 'Bordeaux' card.
Identifying Numbers:
820-0983-A; 620-1270-B
Onboard logic:
Crystal CS4211-KM JTAXVC9826 343S0177-A; Orbit 61439A 343S1220-A N; ImpacTV2 213TV2UA12 B1936; C-Cube ZiVA DS-L TL B3 9826 C41404; IM VPX 3224D-PQ-C3 36-WN-FA 066208.004 8305
Power Mac G3 Personality (PERCH) card provides audio in/out ports, composite/S-Video input/output ports, and provides a modified Comm Slot II which only works with 56k modem signaling. This version also provides MPEG hardware decompression, which integrates with the G3's onboard ATI RAGE chip for DVD playback. The unpopulated USB controller can be used if populated along with the missing support components. This is often referred to as the 'Bordeaux' card.
Identifying Numbers:
820-0983-A; 620-1270-B
Onboard logic:
Crystal CS4211-KM JTAXVC9826 343S0177-A; Orbit 61439A 343S1220-A N; ImpacTV2 213TV2UA12 B1936; C-Cube ZiVA DS-L TL B3 9826 C41404; IM VPX 3224D-PQ-C3 36-WN-FA 066208.004 8305
Description:

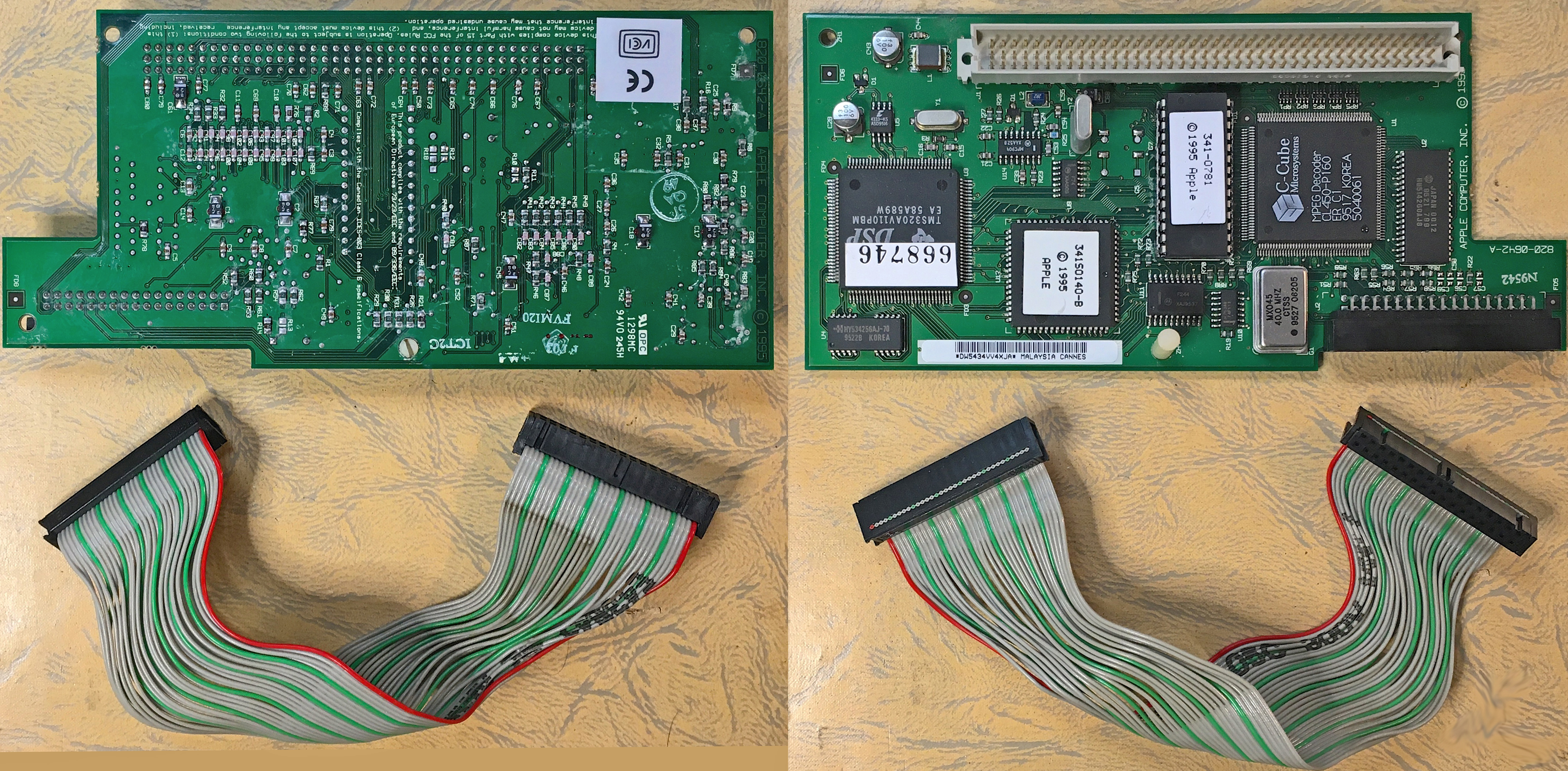

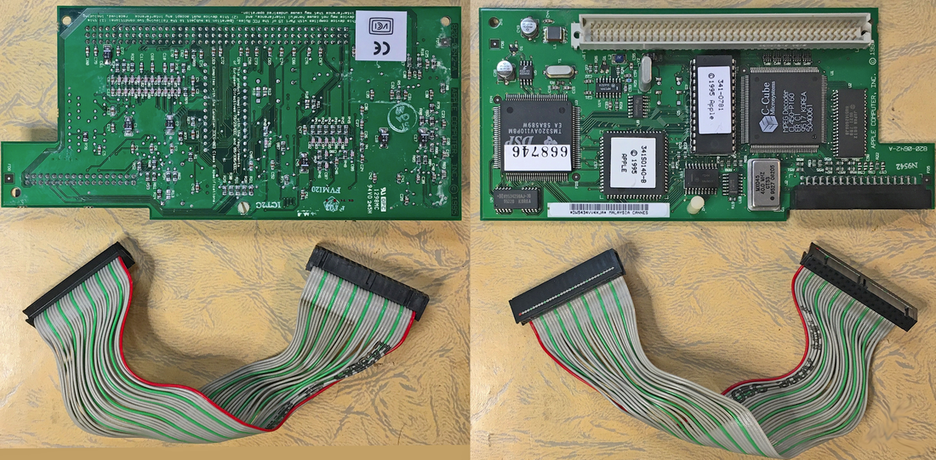

32-bit LC PDS card provides MPEG decoding for Video CD and CD-i via internal 34-pin DAV connector. Specifically for variants of LC 580, 630, 5200, 6200, 5300, & 6300 (non-PCI) with Video-in expansion installed.
Identifying Numbers:
820-0642-A; 341-0781 (ROM); 341S0140-B
Onboard logic:
TI TMS320AV110PBM; C-Cube CL450-P160; AMD AM27C64-120PC (ROM)
32-bit LC PDS card provides MPEG decoding for Video CD and CD-i via internal 34-pin DAV connector. Specifically for variants of LC 580, 630, 5200, 6200, 5300, & 6300 (non-PCI) with Video-in expansion installed.
Identifying Numbers:
820-0642-A; 341-0781 (ROM); 341S0140-B
Onboard logic:
TI TMS320AV110PBM; C-Cube CL450-P160; AMD AM27C64-120PC (ROM)
Description:

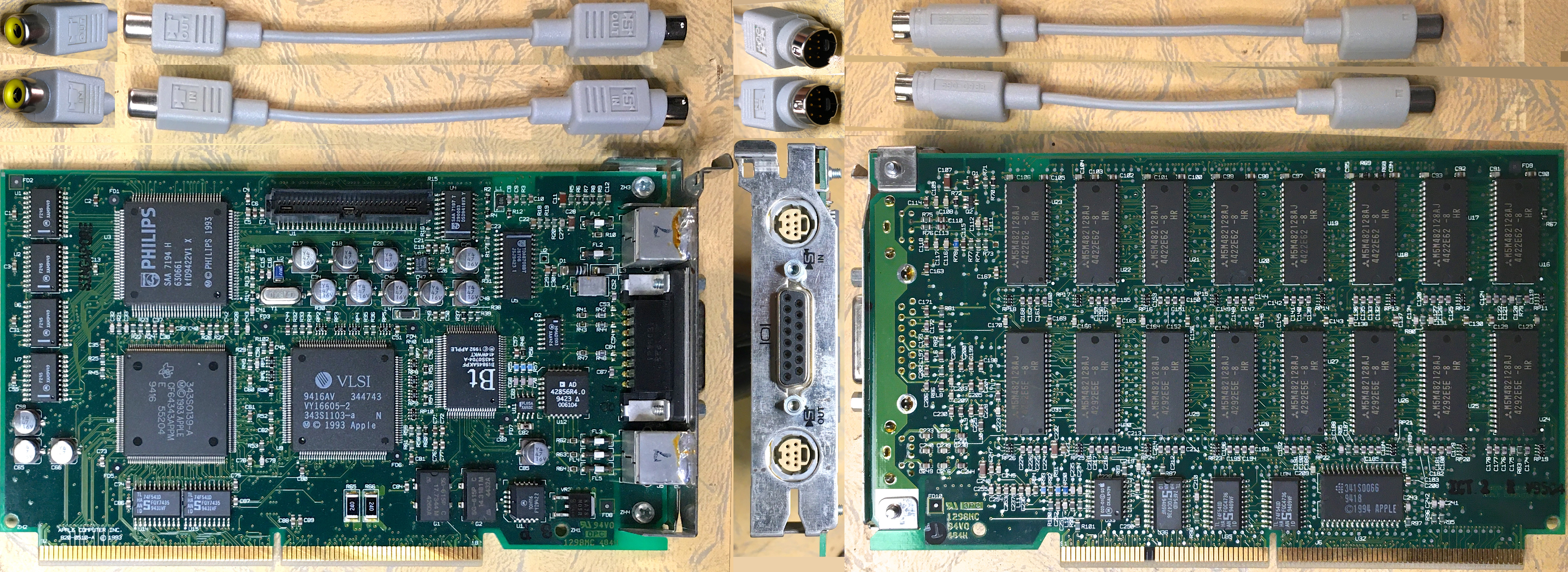

601 PDS card provides high-bandwidth unaccelerated video output up to 832x624 resolution at 32-bit color or up to 1152x870 at 16-bit color, though its 2MB frame buffer is 32 bits wide and is divided in half when video input is active. This card brings the x100 Power Macintosh systems to parity with the 68k-based Quadra 660AV and 840AV models when installed. The DAV port has been redesigned for access via ribbon cable, and instead of dedicated composite I/O, adapters are supplied for the built-in S-Video in and out ports. Due to the 32-bit VRAM bus, this card is significantly slower than the HPV cards. The S-Video in port on this card is the only way to receive color video signal while simultaneously powering the Apple VideoPhone camera (QuickTime Video Conferencing Camera 100,) though workarounds exist to utilize this camera on other AV-equipped systems.
Identifying Numbers:
Power Macintosh AV Card; Apple AV Card; 820-0510-A; 661-1023; 590-0989 (composite out adapter); 590-0988 (composite in adapter)
Onboard logic:
Philips SAA 7194 H 630661 kfD9422V1 X; TI 343S0139-A CF64343APPM (Apple); VLSI 9416AV 344743 VY16605-2 343S1103-a N (Apple); Bt Bt9845AKPF 343S0704-A 414WWKT (Apple)
601 PDS card provides high-bandwidth unaccelerated video output up to 832x624 resolution at 32-bit color or up to 1152x870 at 16-bit color, though its 2MB frame buffer is 32 bits wide and is divided in half when video input is active. This card brings the x100 Power Macintosh systems to parity with the 68k-based Quadra 660AV and 840AV models when installed. The DAV port has been redesigned for access via ribbon cable, and instead of dedicated composite I/O, adapters are supplied for the built-in S-Video in and out ports. Due to the 32-bit VRAM bus, this card is significantly slower than the HPV cards. The S-Video in port on this card is the only way to receive color video signal while simultaneously powering the Apple VideoPhone camera (QuickTime Video Conferencing Camera 100,) though workarounds exist to utilize this camera on other AV-equipped systems.
Identifying Numbers:
Power Macintosh AV Card; Apple AV Card; 820-0510-A; 661-1023; 590-0989 (composite out adapter); 590-0988 (composite in adapter)
Onboard logic:
Philips SAA 7194 H 630661 kfD9422V1 X; TI 343S0139-A CF64343APPM (Apple); VLSI 9416AV 344743 VY16605-2 343S1103-a N (Apple); Bt Bt9845AKPF 343S0704-A 414WWKT (Apple)
Description:

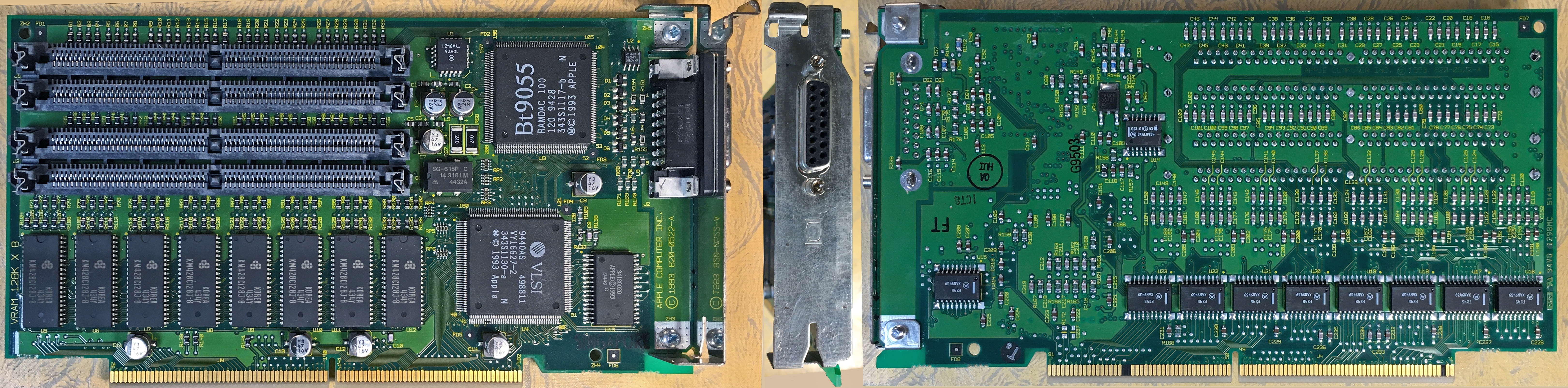

601 PDS card provides high-bandwidth unaccelerated video output with 64 bits wide VRAM interface, 1MB of 80ns VRAM and four SIMM slots for up to 2MB total. Only supports 8, 16, 24-bit color modes. Typically installed in 7100 non-AV models. Can be installed in 6100s with PDS riser or form-compatible G3 upgrade, but the case was not designed for the card's length and may be mitigated by bending the card edge above the drive and protecting it from metal contact.
no SIMMs (1MB)
512 x 384 @ 24-bit
640 x 480 @ 16-bit
640 x 870 @ 8-bit
768 x 576 @ 16-bit
800 x 600 @ 16-bit
832 x 624 @ 16-bit
1024 x 768 @ 8-bit
1152 x 870 @ 8-bit
4 x 256k 68-pin, 80ns or faster (2MB)
512 x 384 @ 24-bit
640 x 480 @ 24-bit
640 x 870 @ 8-bit
768 x 576 @ 24-bit
800 x 600 @ 24-bit
832 x 624 @ 24-bit
1024 x 768 @ 16-bit
1152 x 870 @ 16-bit
4 x 512k will function identically to 4 x 256k.
Identifying Numbers:
Apple 7100 HPV Card (1/2); Power Macintosh High Performance Video Card; 820-0522-A
Onboard logic:
VLSI 9440AS 498811 VY16627-2 343S1130-a N ; Bt Bt9055 RAMDAC 100 120 9428 343S1117-b
601 PDS card provides high-bandwidth unaccelerated video output with 64 bits wide VRAM interface, 1MB of 80ns VRAM and four SIMM slots for up to 2MB total. Only supports 8, 16, 24-bit color modes. Typically installed in 7100 non-AV models. Can be installed in 6100s with PDS riser or form-compatible G3 upgrade, but the case was not designed for the card's length and may be mitigated by bending the card edge above the drive and protecting it from metal contact.
no SIMMs (1MB)
512 x 384 @ 24-bit
640 x 480 @ 16-bit
640 x 870 @ 8-bit
768 x 576 @ 16-bit
800 x 600 @ 16-bit
832 x 624 @ 16-bit
1024 x 768 @ 8-bit
1152 x 870 @ 8-bit
4 x 256k 68-pin, 80ns or faster (2MB)
512 x 384 @ 24-bit
640 x 480 @ 24-bit
640 x 870 @ 8-bit
768 x 576 @ 24-bit
800 x 600 @ 24-bit
832 x 624 @ 24-bit
1024 x 768 @ 16-bit
1152 x 870 @ 16-bit
4 x 512k will function identically to 4 x 256k.
Identifying Numbers:
Apple 7100 HPV Card (1/2); Power Macintosh High Performance Video Card; 820-0522-A
Onboard logic:
VLSI 9440AS 498811 VY16627-2 343S1130-a N ; Bt Bt9055 RAMDAC 100 120 9428 343S1117-b
Description:

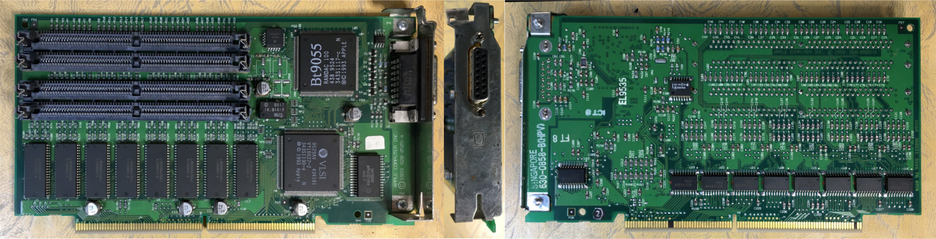

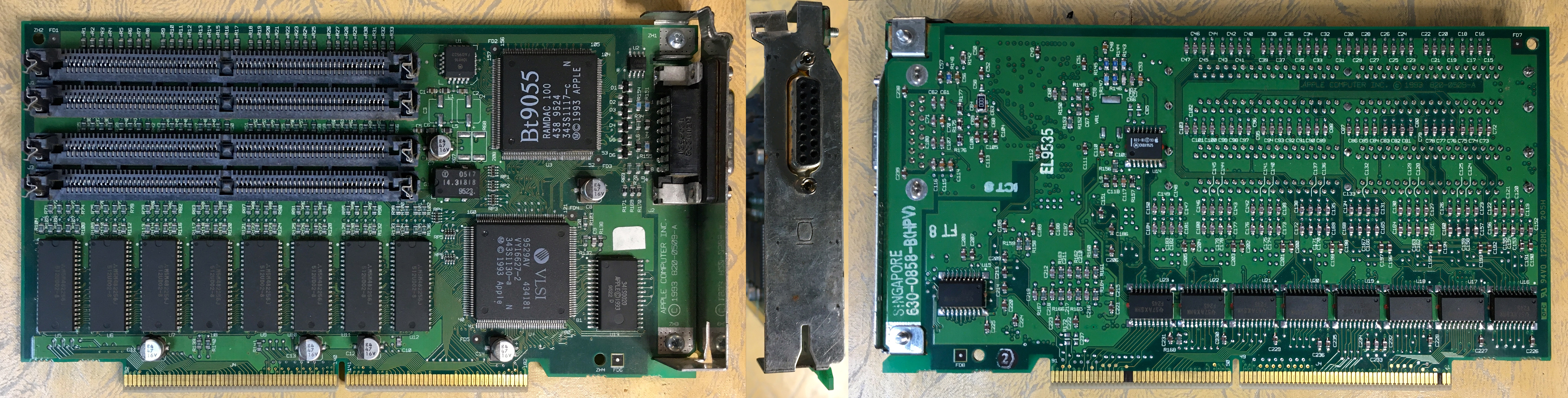

601 PDS card provides high-bandwidth unaccelerated video output with 64 bits wide VRAM interface, 2MB of 80ns VRAM and four SIMM slots for up to 4MB total. Only supports 8, 16, 24-bit color modes. Typically installed in 8100 non-AV models but can also be used as an upgrade for the 7100's card. Can be installed in 6100s with PDS riser or form-compatible G3 upgrade, but the case was not designed for the card's length and may be mitigated by bending the card edge above the drive and protecting it from metal contact. The top of the factory bracket on this example is intentionally bent to accommodate installation alongside a Sonnet Crescendo upgrade with 71/81 PDS riser.
no SIMMs (2MB)
512 x 384 @ 24-bit
640 x 480 @ 24-bit
640 x 870 @ 8-bit
768 x 576 @ 24-bit
800 x 600 @ 24-bit
832 x 624 @ 24-bit
1024 x 768 @ 16-bit
1152 x 870 @ 16-bit
4 x 512k 68-pin, 80ns or faster (4MB)
512 x 384 @ 24-bit
640 x 480 @ 24-bit
640 x 870 @ 8-bit
768 x 576 @ 24-bit
800 x 600 @ 24-bit
832 x 624 @ 24-bit
1024 x 768 @ 24-bit
1152 x 870 @ 24-bit
Identifying Numbers:
Apple 8100 HPV Card (2/4); Power Macintosh High Performance Video Card; 820-0509-A; 630-0858-B(HPV)
Onboard logic:
VLSI 9529AV 434181 VY16627-2 343S1130-a N ; Bt Bt9055 RAMDAC 100 438 9524 343S1117-c
601 PDS card provides high-bandwidth unaccelerated video output with 64 bits wide VRAM interface, 2MB of 80ns VRAM and four SIMM slots for up to 4MB total. Only supports 8, 16, 24-bit color modes. Typically installed in 8100 non-AV models but can also be used as an upgrade for the 7100's card. Can be installed in 6100s with PDS riser or form-compatible G3 upgrade, but the case was not designed for the card's length and may be mitigated by bending the card edge above the drive and protecting it from metal contact. The top of the factory bracket on this example is intentionally bent to accommodate installation alongside a Sonnet Crescendo upgrade with 71/81 PDS riser.
no SIMMs (2MB)
512 x 384 @ 24-bit
640 x 480 @ 24-bit
640 x 870 @ 8-bit
768 x 576 @ 24-bit
800 x 600 @ 24-bit
832 x 624 @ 24-bit
1024 x 768 @ 16-bit
1152 x 870 @ 16-bit
4 x 512k 68-pin, 80ns or faster (4MB)
512 x 384 @ 24-bit
640 x 480 @ 24-bit
640 x 870 @ 8-bit
768 x 576 @ 24-bit
800 x 600 @ 24-bit
832 x 624 @ 24-bit
1024 x 768 @ 24-bit
1152 x 870 @ 24-bit
Identifying Numbers:
Apple 8100 HPV Card (2/4); Power Macintosh High Performance Video Card; 820-0509-A; 630-0858-B(HPV)
Onboard logic:
VLSI 9529AV 434181 VY16627-2 343S1130-a N ; Bt Bt9055 RAMDAC 100 438 9524 343S1117-c
Description:

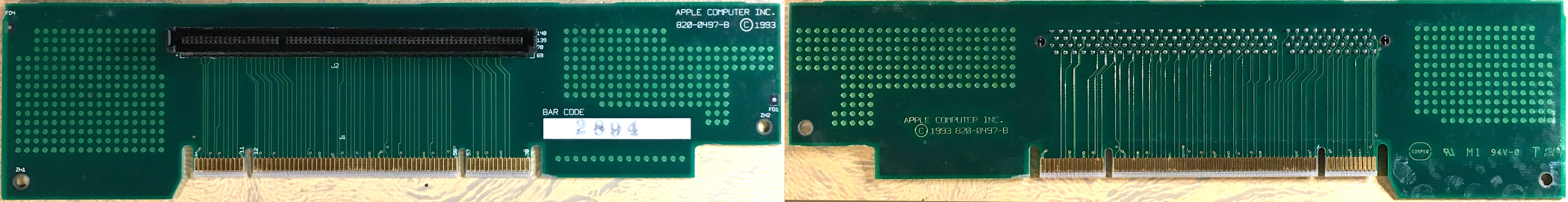

040 PDS riser card for the Centris 610 and Quadra 610 (Quadra 660AV?) allows installing full height 040 PDS cards such as the Power Macintosh Upgrade Card.
Identifying Numbers:
820-0497-B
Onboard logic:
none
040 PDS riser card for the Centris 610 and Quadra 610 (Quadra 660AV?) allows installing full height 040 PDS cards such as the Power Macintosh Upgrade Card.
Identifying Numbers:
820-0497-B
Onboard logic:
none
Description:

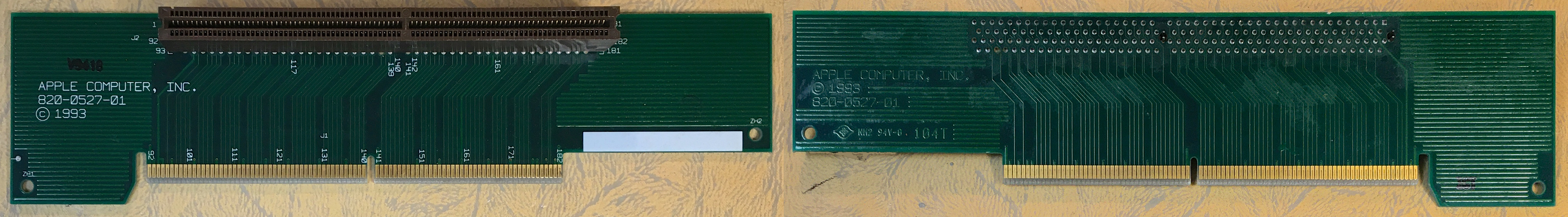

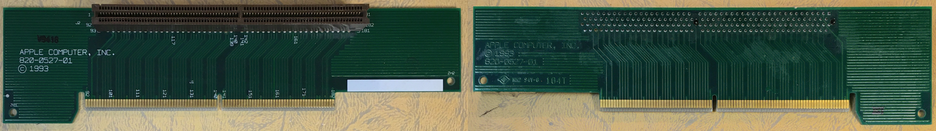

601 PDS riser card for the Power Macintosh 6100, allows installing full height 601 PDS cards such as the A/V card or the HPV card.
Identifying Numbers:
820-0527-01
Onboard logic:
none
601 PDS riser card for the Power Macintosh 6100, allows installing full height 601 PDS cards such as the A/V card or the HPV card.
Identifying Numbers:
820-0527-01
Onboard logic:
none
Description:

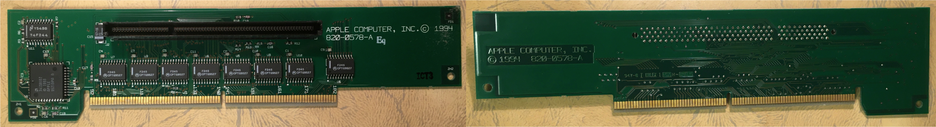

601 PDS riser card for the Power Macintosh 6100 allows installing the DOS Compatibility Card (Houdini II) which uses an 040 PDS connector. Not sure if any other 040 PDS cards can be used with this.
Identifying Numbers:
820-0578-A
Onboard logic:
AMD 341S0102 9521DPA A
601 PDS riser card for the Power Macintosh 6100 allows installing the DOS Compatibility Card (Houdini II) which uses an 040 PDS connector. Not sure if any other 040 PDS cards can be used with this.
Identifying Numbers:
820-0578-A
Onboard logic:
AMD 341S0102 9521DPA A
Description:

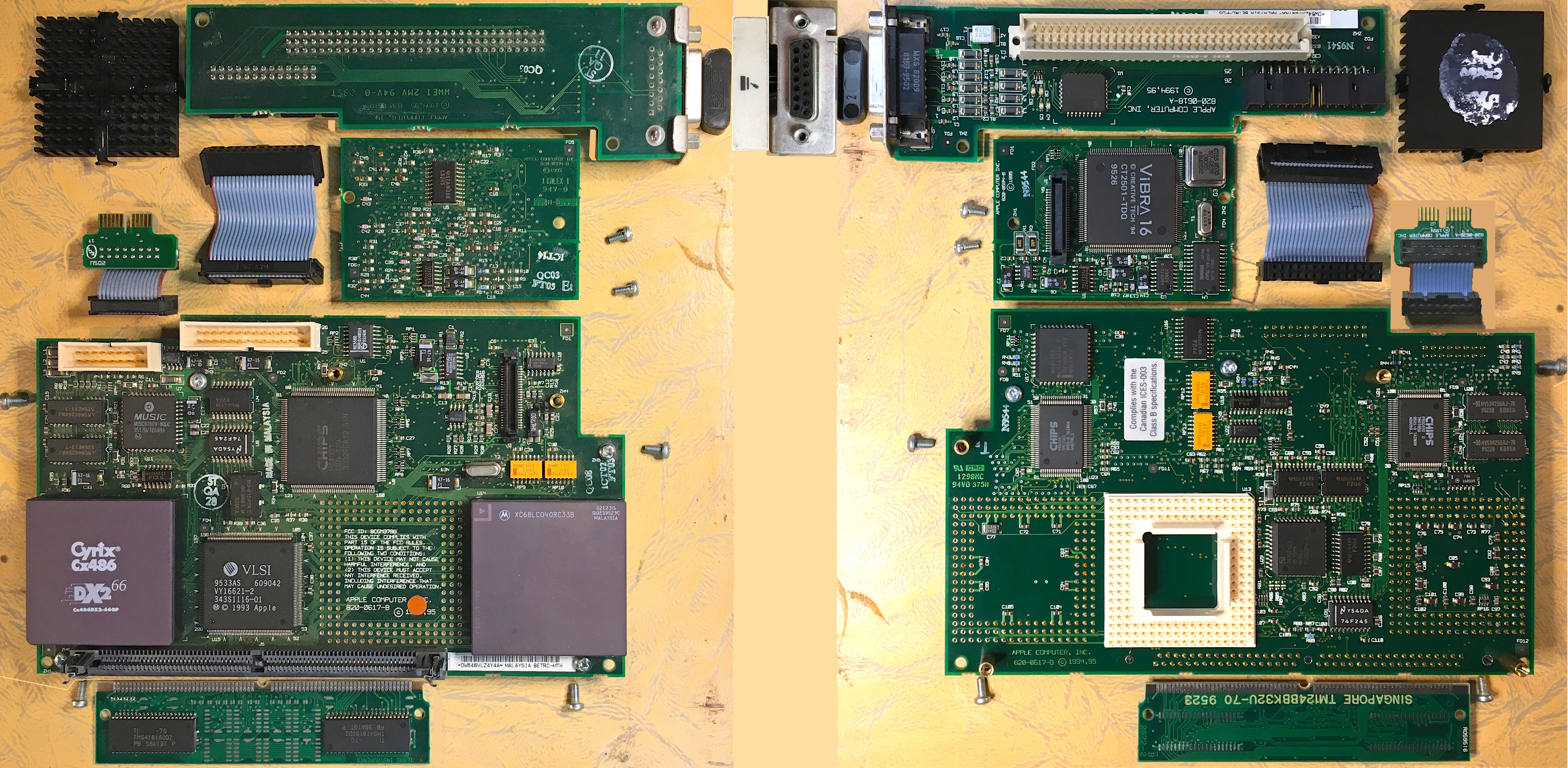

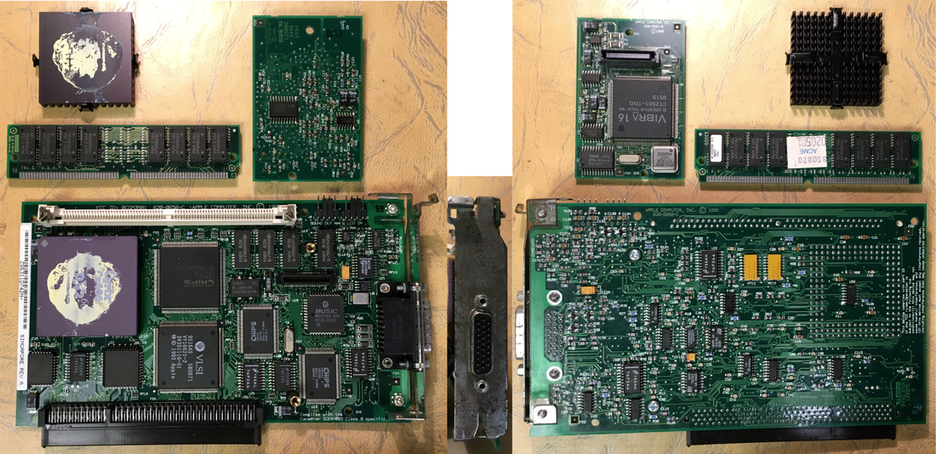

040 PDS card contains full 486 single board computer, one memory SIMM, and soundblaster compatible sound daughterboard. Has internal headers for CD audio passthrough, and external port for four-ended adapter cable providing VGA loopback from the host Mac as well as joystick port. These OEM units were usually shipped in Power Macintosh 6100 variants, aftermarket units were sold by Reply corp (maybe later Radius.)
Identifying Numbers:
DOS Compatibility Card; Houdini II; 820-0658-C; 820-0594-B
Onboard logic:
Cyrix Cx486DX2-66GP; VLSI 9516AS 580871 VY16621-2 343S1116-01; Chips F84031 CEN-129; Chips F84035 TM1196C; Chips F82C450 D TMD785B; Music MU9C9760V-80DC; Creative Tech Vibra 16 CT2501-TDQ
040 PDS card contains full 486 single board computer, one memory SIMM, and soundblaster compatible sound daughterboard. Has internal headers for CD audio passthrough, and external port for four-ended adapter cable providing VGA loopback from the host Mac as well as joystick port. These OEM units were usually shipped in Power Macintosh 6100 variants, aftermarket units were sold by Reply corp (maybe later Radius.)
Identifying Numbers:
DOS Compatibility Card; Houdini II; 820-0658-C; 820-0594-B
Onboard logic:
Cyrix Cx486DX2-66GP; VLSI 9516AS 580871 VY16621-2 343S1116-01; Chips F84031 CEN-129; Chips F84035 TM1196C; Chips F82C450 D TMD785B; Music MU9C9760V-80DC; Creative Tech Vibra 16 CT2501-TDQ
Description:
68040 socket and 16-bit LC PDS combo card contains full 486 single board computer, one memory SIMM, and soundblaster compatible sound daughterboard. Internal audio/video loopback via GIMO port, and external joystick port. These OEM units were usually shipped in LC 630 variants, aftermarket units were sold by Reply corp (maybe later Radius.)
Identifying Numbers:
DOS Compatibility Card; Houdini II; 820-0617-B; 820-0594-B; 820-0618-A; 820-0628-A; BCGM3798
Onboard logic:
Cyrix Cx486DX2-66GP; Motorola XC68LC040RC33B 02E23G (from 640CD); VLSI 9533AS 609042 VY16621-2 343S1116-01; Chips F84031 CEN 129; Music MU9C9760-80DC; Chips F82C450 D TM07858; Chips F84035 TM1196C; Intel N8242PC LS363866 E; Creative Tech Vibra 16 CT2501-TDQ
68040 socket and 16-bit LC PDS combo card contains full 486 single board computer, one memory SIMM, and soundblaster compatible sound daughterboard. Internal audio/video loopback via GIMO port, and external joystick port. These OEM units were usually shipped in LC 630 variants, aftermarket units were sold by Reply corp (maybe later Radius.)
Identifying Numbers:
DOS Compatibility Card; Houdini II; 820-0617-B; 820-0594-B; 820-0618-A; 820-0628-A; BCGM3798
Onboard logic:
Cyrix Cx486DX2-66GP; Motorola XC68LC040RC33B 02E23G (from 640CD); VLSI 9533AS 609042 VY16621-2 343S1116-01; Chips F84031 CEN 129; Music MU9C9760-80DC; Chips F82C450 D TM07858; Chips F84035 TM1196C; Intel N8242PC LS363866 E; Creative Tech Vibra 16 CT2501-TDQ

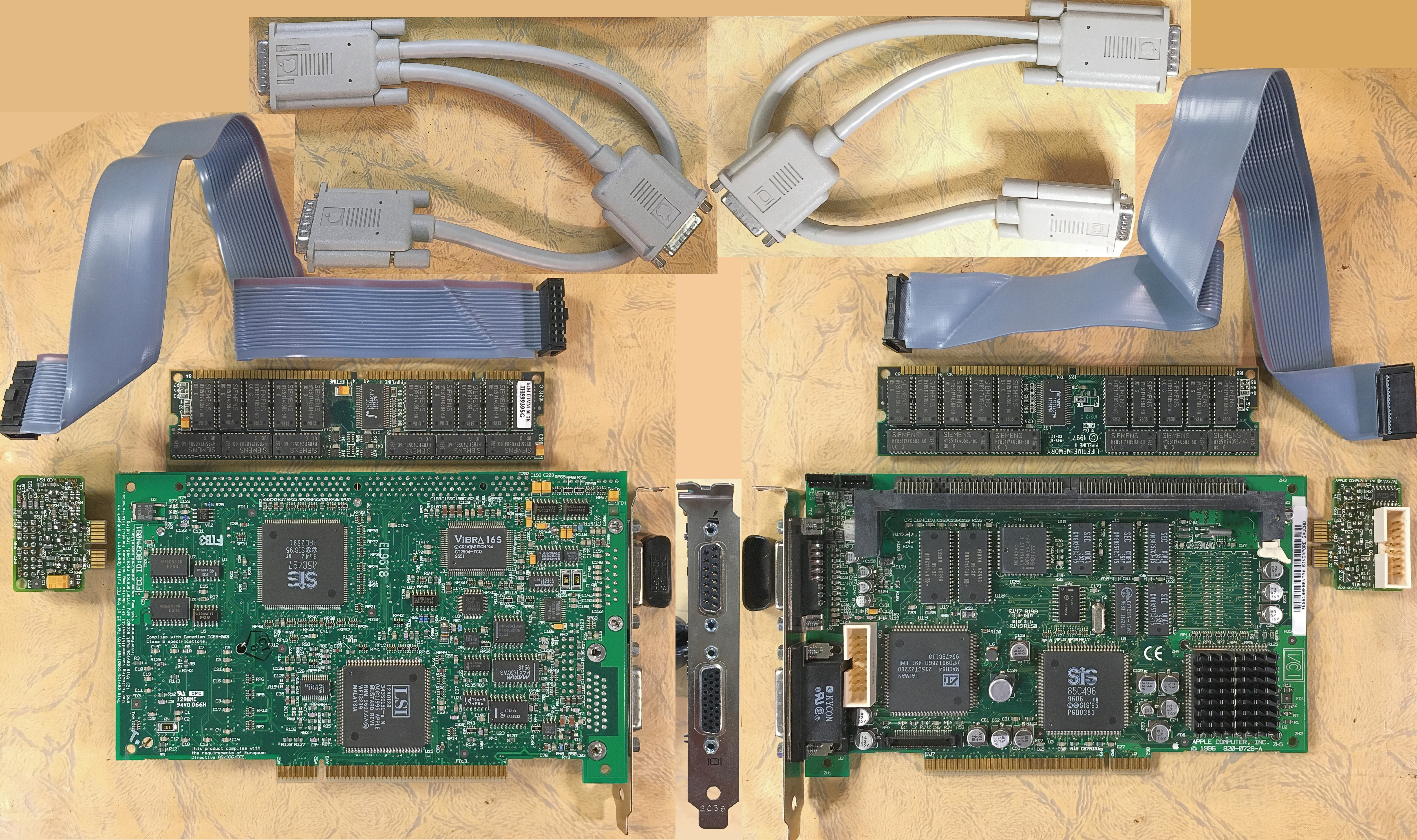

Description:
5v 32-bit PCI card contains full 100 MHz 5x86 single board computer with one memory DIMM, internal audio/video loopback via GIMO header and soundblaster audio headers, XD Expansion header for separate (not pictured) Serial/Parallel PCI card, and external loopback interface and joystick port. These OEM units were usually shipped in 5400, 6400, 6300/160 & 6360 PC Compatible variants; similar aftermarket units were sold by Reply corp and later Radius.)
Identifying Numbers:
7" PC Compatibility Card; 820-0728-A; BCGM4091; 590-4539 (Loopback cable); 820-0697-B (GIMO interface)
Onboard logic:
SiS 85C496;ATI MACH64 215CT22200 µPD96128GD-491-LML;Intel N8242PC L5461117 E;LSI L2A0128 343S0151-a N MUSTARD REV1 WE13239;SiS 85C497 PFD2591;Creative Tech Vibra 16S CT2504-TCQ
5v 32-bit PCI card contains full 100 MHz 5x86 single board computer with one memory DIMM, internal audio/video loopback via GIMO header and soundblaster audio headers, XD Expansion header for separate (not pictured) Serial/Parallel PCI card, and external loopback interface and joystick port. These OEM units were usually shipped in 5400, 6400, 6300/160 & 6360 PC Compatible variants; similar aftermarket units were sold by Reply corp and later Radius.)
Identifying Numbers:
7" PC Compatibility Card; 820-0728-A; BCGM4091; 590-4539 (Loopback cable); 820-0697-B (GIMO interface)
Onboard logic:
SiS 85C496;ATI MACH64 215CT22200 µPD96128GD-491-LML;Intel N8242PC L5461117 E;LSI L2A0128 343S0151-a N MUSTARD REV1 WE13239;SiS 85C497 PFD2591;Creative Tech Vibra 16S CT2504-TCQ

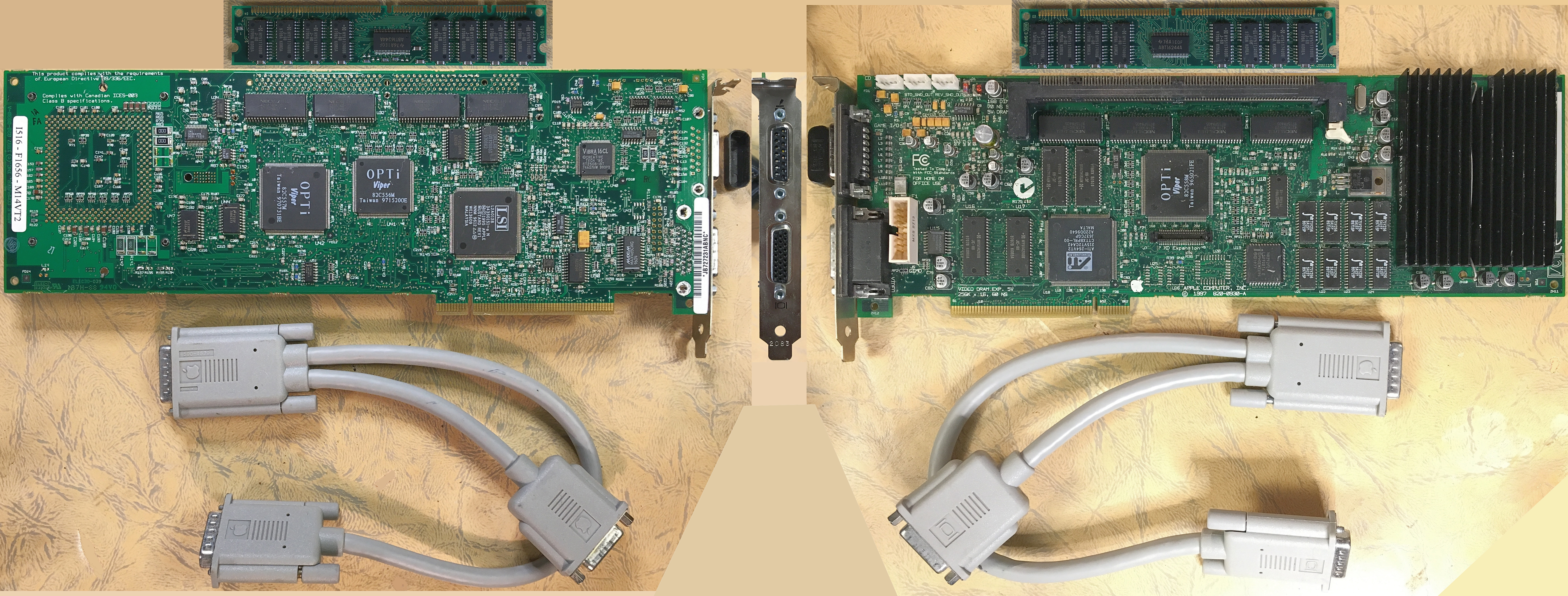

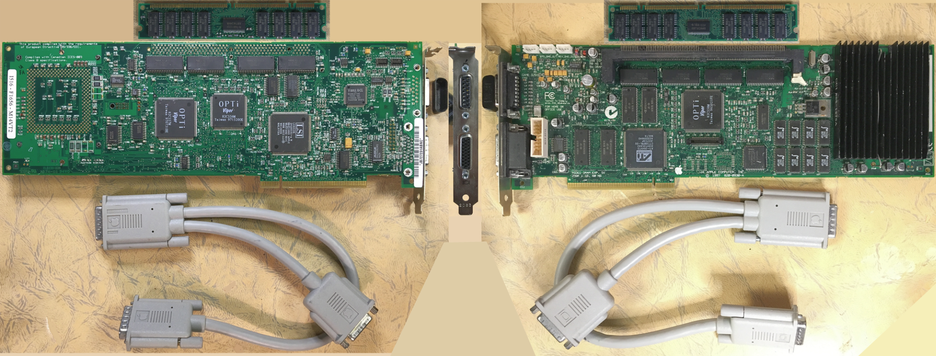

Description:
5v 32-bit PCI card contains full 166 MHz Pentium single board computer with one memory DIMM, internal audio/video loopback via GIMO header and soundblaster audio headers, XD Expansion header for separate (not pictured) Serial/Parallel PCI card, and external loopback interface and joystick port. These OEM units were usually shipped in 7300 PC Compatible variants; similar aftermarket units were sold by Reply corp and later Radius.)
Identifying Numbers:
12" PC Compatibility Card; PR166; 820-0930-A; I516-F1656-M14VT2; 590-4539 (Loopback cable); CCI 805-1275A (Heatsink)
Onboard logic:
OPTi Viper 82C558M;ATI ATI-264VT2 215VT2CA42;Intel N8242PC L529816 E;OPTi Viper 82C557M;OPTi Viper 82C556M;LSI L2A0128 343S0151-a N MUSTARD REV1;Creative Tech Vibra 16CL CT250B-IBT 74A07HW 980PQ
5v 32-bit PCI card contains full 166 MHz Pentium single board computer with one memory DIMM, internal audio/video loopback via GIMO header and soundblaster audio headers, XD Expansion header for separate (not pictured) Serial/Parallel PCI card, and external loopback interface and joystick port. These OEM units were usually shipped in 7300 PC Compatible variants; similar aftermarket units were sold by Reply corp and later Radius.)
Identifying Numbers:
12" PC Compatibility Card; PR166; 820-0930-A; I516-F1656-M14VT2; 590-4539 (Loopback cable); CCI 805-1275A (Heatsink)
Onboard logic:
OPTi Viper 82C558M;ATI ATI-264VT2 215VT2CA42;Intel N8242PC L529816 E;OPTi Viper 82C557M;OPTi Viper 82C556M;LSI L2A0128 343S0151-a N MUSTARD REV1;Creative Tech Vibra 16CL CT250B-IBT 74A07HW 980PQ

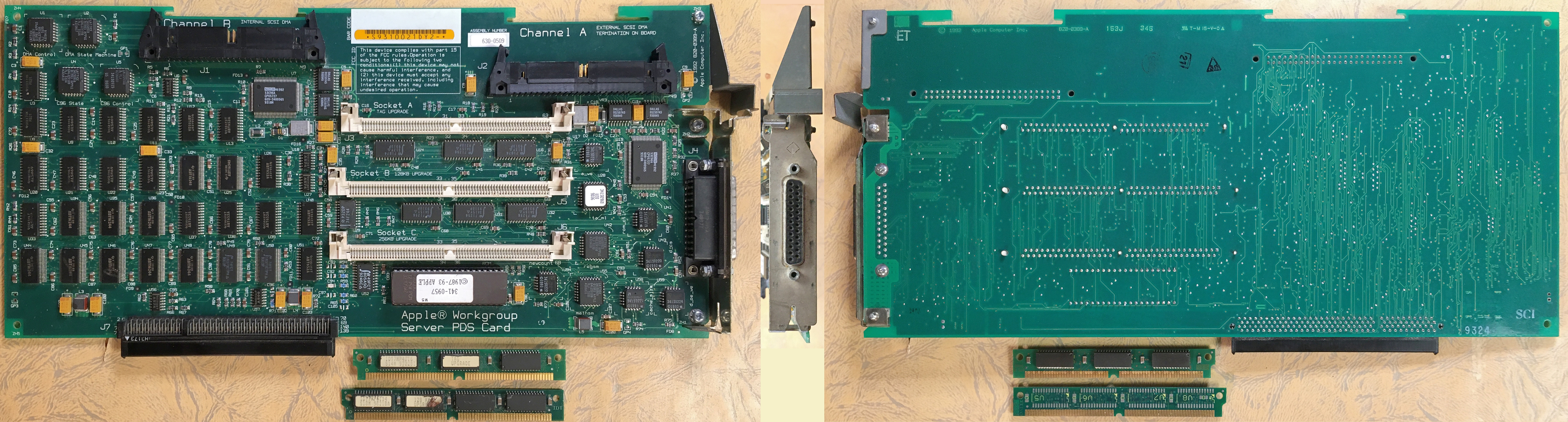

Description:

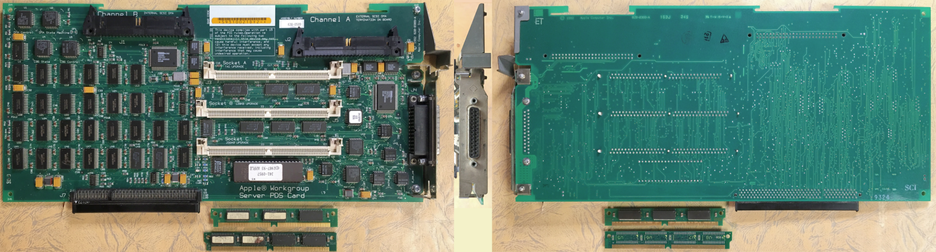

040 PDS card provides 128k onboard L2 cache, expandable to 256k using '128k upgrade' and 48k 'TAG upgrade' (both pictured) or 512k by also using '256k upgrade' (not pictured.) Card also features two DMA-capable SCSI II interfaces, only accessible when the host is running A/UX. Card is intended for use in the Quadra 950, which is considered a Workgroup Server 95 when installed. This card brings the 950 to relative parity with the IIfx, as its motherboard also featured L2 cache and DMA SCSI, the latter of which was only utilized by A/UX. The card is unusually tall and will not fit in any chassis other than the 9x0; unclear if any support was considered for the 900.
Identifying Numbers:
Workgroup Server PDS Card; 820-0389-A; Pisces; W5 341-0957 (ROM)
Onboard logic:
NCR 53C96A CP05727 609-3400565 (x2); AMD AM27C1024 -200DC (ROM)
040 PDS card provides 128k onboard L2 cache, expandable to 256k using '128k upgrade' and 48k 'TAG upgrade' (both pictured) or 512k by also using '256k upgrade' (not pictured.) Card also features two DMA-capable SCSI II interfaces, only accessible when the host is running A/UX. Card is intended for use in the Quadra 950, which is considered a Workgroup Server 95 when installed. This card brings the 950 to relative parity with the IIfx, as its motherboard also featured L2 cache and DMA SCSI, the latter of which was only utilized by A/UX. The card is unusually tall and will not fit in any chassis other than the 9x0; unclear if any support was considered for the 900.
Identifying Numbers:
Workgroup Server PDS Card; 820-0389-A; Pisces; W5 341-0957 (ROM)
Onboard logic:
NCR 53C96A CP05727 609-3400565 (x2); AMD AM27C1024 -200DC (ROM)

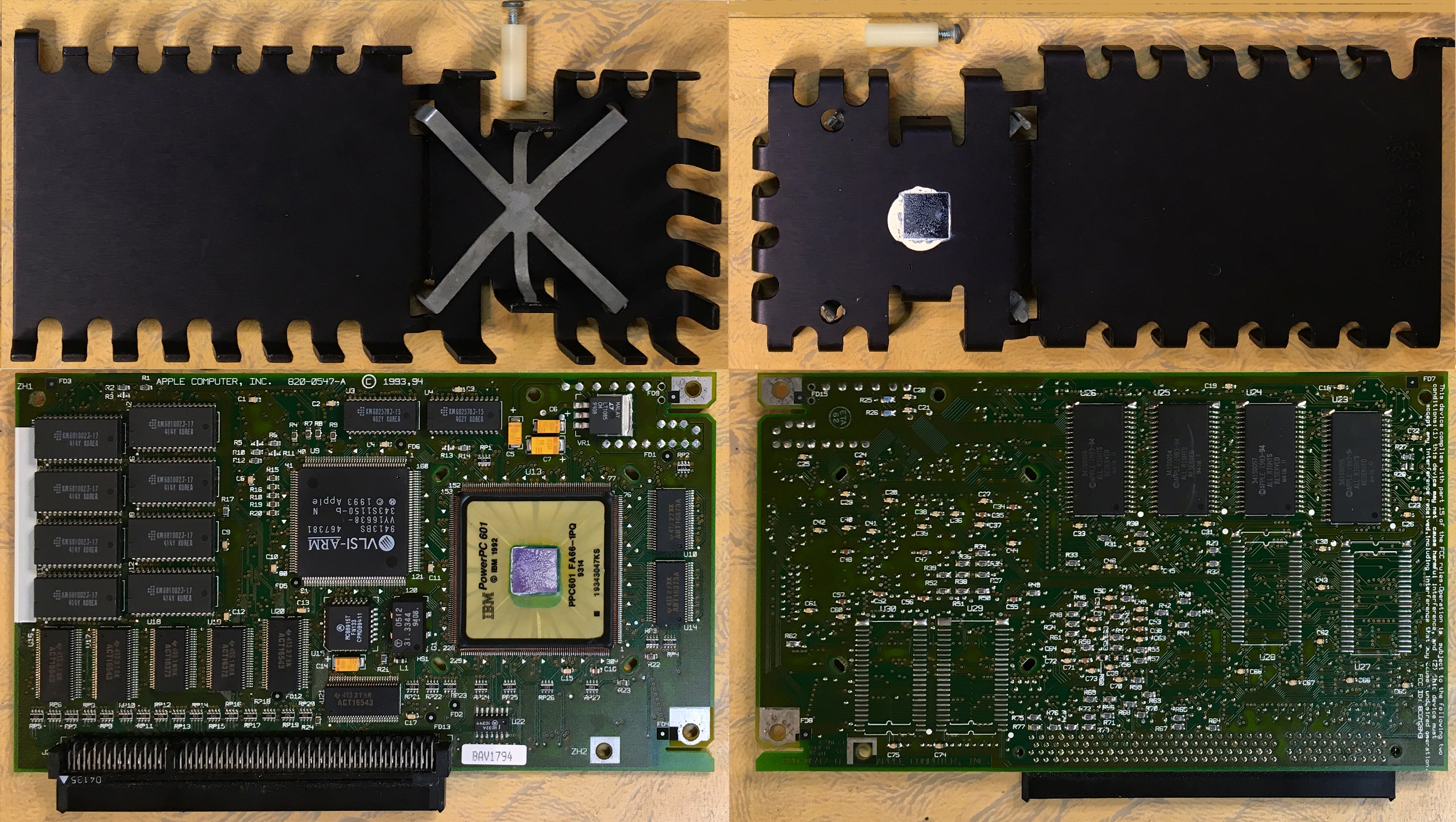

Description:

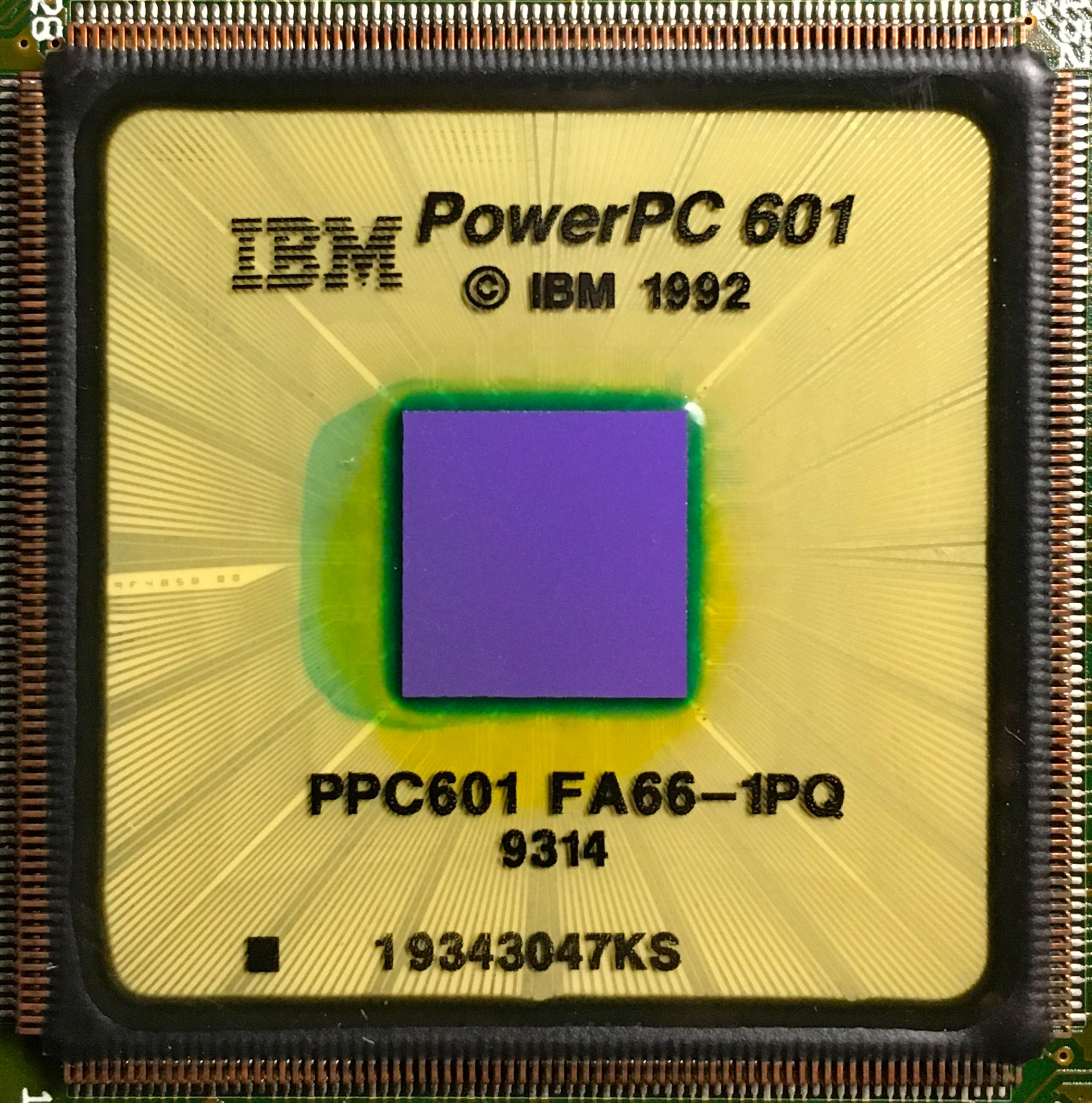

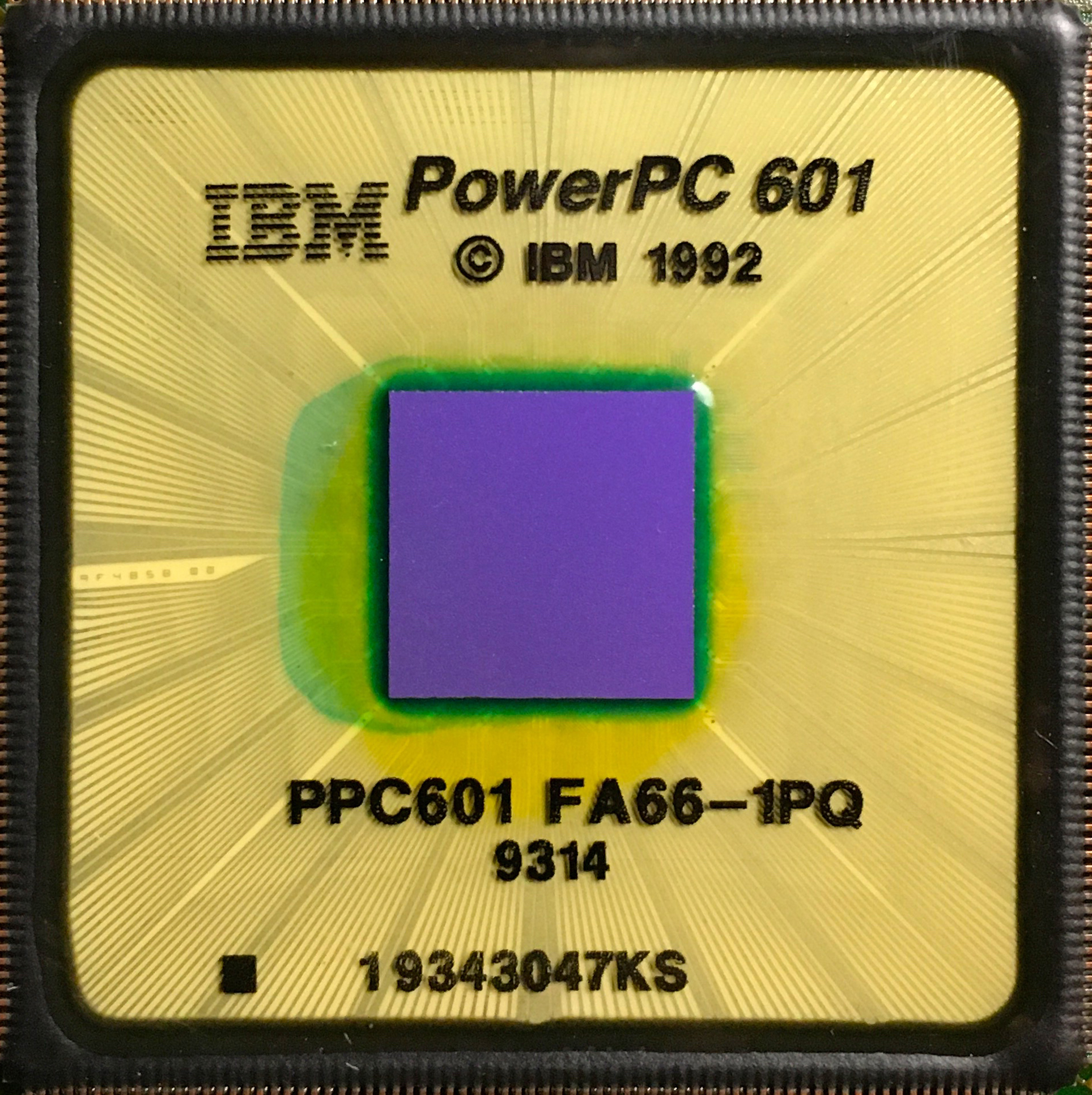

040 PDS card provides PowerPC 601 processor running double the clock of the 68040-based host. Card contains 1MB of 64-bit SRAM cache and updated ROMs for the PowerPC architecture. Similar models were marketed by DayStar. Replaced by 820-0562-A?
Identifying Numbers:
Power Macintosh Upgrade Card; 820-0547-A; BCGM2843; BAV1794
Onboard logic:

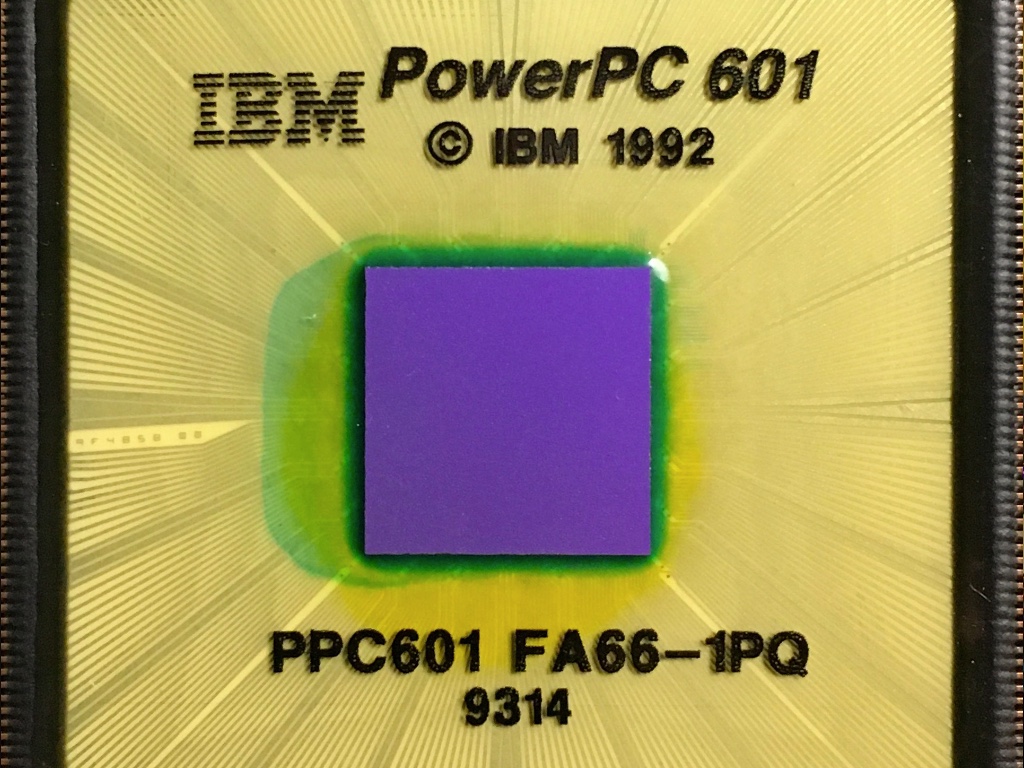

IBM PPC601 FA66-1PQ; VLSI-ARM 9413BS 467381 VY16638- 343S1150-b N
040 PDS card provides PowerPC 601 processor running double the clock of the 68040-based host. Card contains 1MB of 64-bit SRAM cache and updated ROMs for the PowerPC architecture. Similar models were marketed by DayStar. Replaced by 820-0562-A?
Identifying Numbers:
Power Macintosh Upgrade Card; 820-0547-A; BCGM2843; BAV1794
Onboard logic:
IBM PPC601 FA66-1PQ; VLSI-ARM 9413BS 467381 VY16638- 343S1150-b N

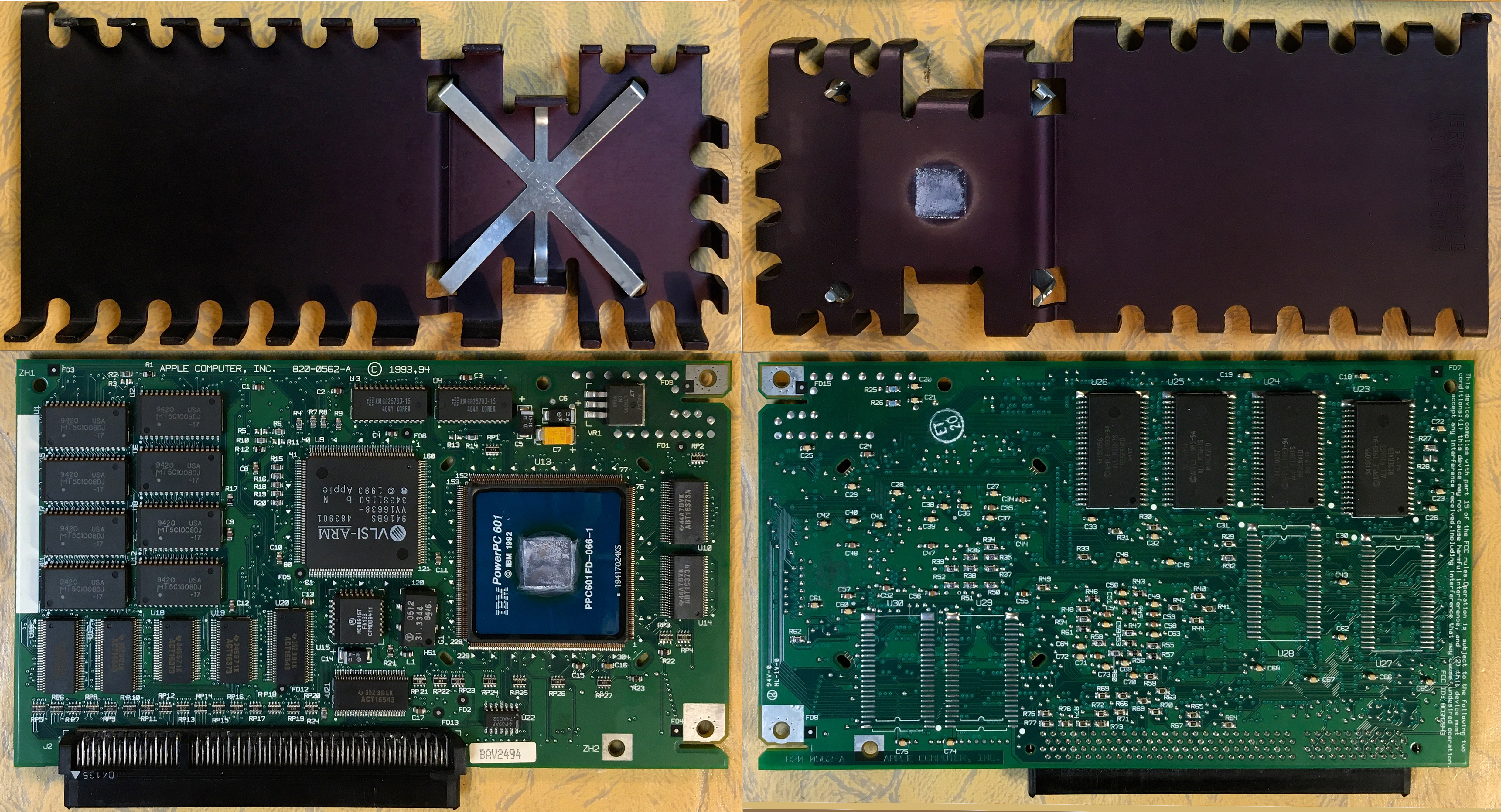

Description:
040 PDS card provides PowerPC 601 processor running double the clock of the 68040-based host. Card contains 1MB of 64-bit SRAM cache and updated ROMs for the PowerPC architecture. Similar models were marketed by DayStar.
Identifying Numbers:
Power Macintosh Upgrade Card; 820-0562-A; BCGM2843; BAV2494
Onboard logic:
IBM PPC601FD-066-1; VLSI-ARM 9416BS 483901 VY16638- 343S1150-b N
PDF: Installation Manual (Japanese) [the OCR on this file does not recognize Japanese text and should be redone]
040 PDS card provides PowerPC 601 processor running double the clock of the 68040-based host. Card contains 1MB of 64-bit SRAM cache and updated ROMs for the PowerPC architecture. Similar models were marketed by DayStar.
Identifying Numbers:
Power Macintosh Upgrade Card; 820-0562-A; BCGM2843; BAV2494
Onboard logic:
IBM PPC601FD-066-1; VLSI-ARM 9416BS 483901 VY16638- 343S1150-b N
PDF: Installation Manual (Japanese) [the OCR on this file does not recognize Japanese text and should be redone]
Description:

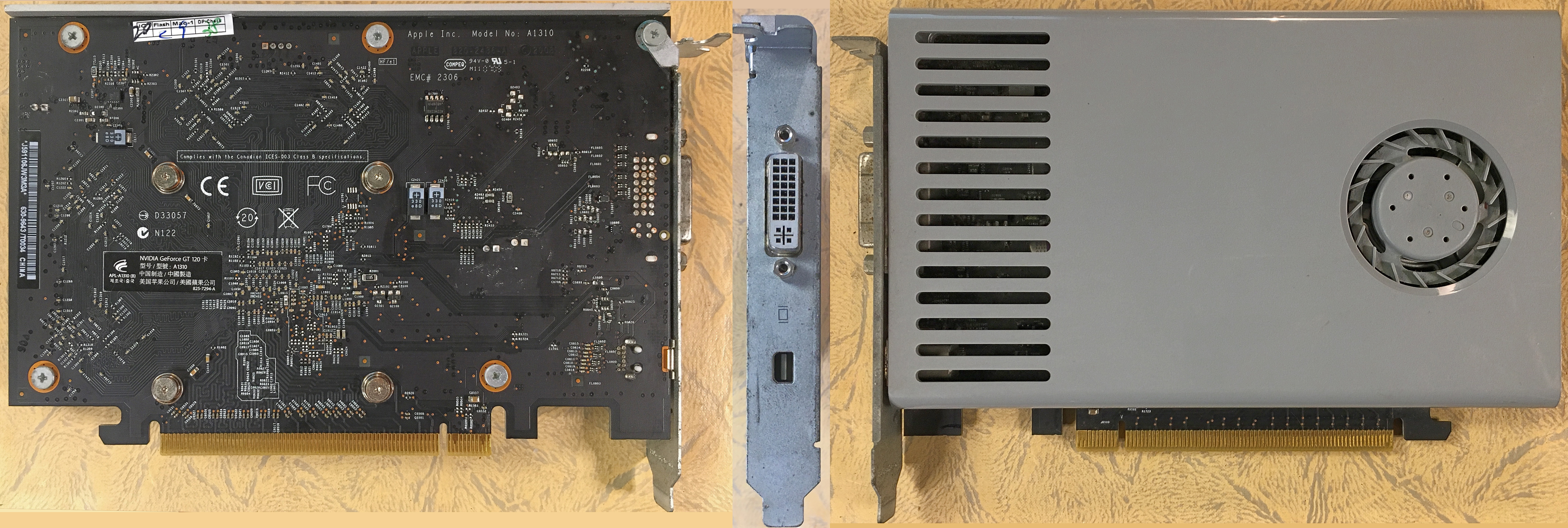

16x PCIe 2.0 card provides 3D accelerated video output at up to dual 2560 x 1600 resolution/32-bit color via its dual-link DVI port and mini DisplayPort. Card is equipped with 512MB VRAM. Apple shipped this card as the default graphics option for the Early 2009 model of Mac Pro. The card requires no auxiliary power and occupies a single slot, so multiple can be installed in the Mac Pro to increase the number of displays simultaneously supported.
Identifying Numbers:
A1310; NVIDIA GeForce GT 120; 630-9643/T0034; EMC# 2306; 825-7294-A; APL-A1310 (B)
Onboard logic:
nVidia G96C
16x PCIe 2.0 card provides 3D accelerated video output at up to dual 2560 x 1600 resolution/32-bit color via its dual-link DVI port and mini DisplayPort. Card is equipped with 512MB VRAM. Apple shipped this card as the default graphics option for the Early 2009 model of Mac Pro. The card requires no auxiliary power and occupies a single slot, so multiple can be installed in the Mac Pro to increase the number of displays simultaneously supported.
Identifying Numbers:
A1310; NVIDIA GeForce GT 120; 630-9643/T0034; EMC# 2306; 825-7294-A; APL-A1310 (B)
Onboard logic:
nVidia G96C
